What is difference between push broom scanner and whisk broom scanner?
Push broom scanners, also sometimes referred to as along track scanners, use a line of detectors arranged perpendicular to the flight direction of the spacecraft. A push broom scanner receives a stronger signal than a whisk broom scanner because it looks at each pixel area for longer.
What is push broom remote sensing?
A Push broom scanner (along track scanner) is a technology for obtaining satellite images with optical cameras. It is used for passive remote sensing from space. In a push broom sensor, a line of sensors arranged perpendicular to the flight direction of the spacecraft is used.
What is a push broom technology What is the advantage?
A push broom scanner can gather more light than a whisk broom scanner because it looks at a particular area for a longer time, like a long exposure on a camera.
What is Pushbroom?
: a long-handled wide brush that is designed to be pushed and is used for sweeping.

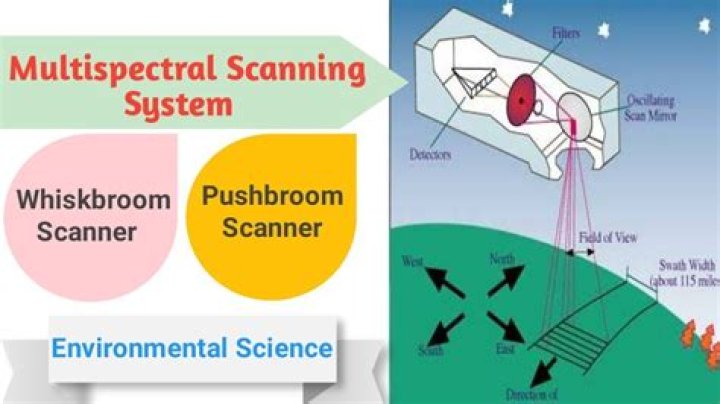

What is multispectral scanners and types of scanners?
A scanning system used to collect data over a variety of different wavelength ranges is called a multispectral scanner (MSS), and is the most commonly used scanning system. There are two main modes or methods of scanning employed to acquire multispectral image data – across-track scanning, and along-track scanning.
What is active remote sensor?
Remote sensing instruments are of two primary types: Active sensors, provide their own source of energy to illuminate the objects they observe. An active sensor emits radiation in the direction of the target to be investigated. Reflected sunlight is the most common source of radiation measured by passive sensors.
What is along track scanners?
A remote sensing method by means of a line of several fixed sensors which record reflected radiation from the terrain along the satellite’s direction of movement, creating scan-line strips that are contiguous or that overlap slightly, thereby producing an image.
What are the different types of scanners?
The information will include; cost, and how its used The four common scanner types are: Flatbed, Sheet-fed, Handheld, and Drum scanners.
What is a multispectral sensor?
Multispectral imagery is produced by sensors that measure reflected energy within several specific sections (also called bands) of the electromagnetic spectrum. Multispectral sensors usually have between 3 and 10 different band measurements in each pixel of the images they produce.
What is the difference between an active sensor and a passive sensor?
Active sensors have its own source of light or illumination. In particular, it actively sends a pulse and measures the backscatter reflected to the sensor. But passive sensors measure reflected sunlight emitted from the sun. When the sun shines, passive sensors measure this energy.
What is non scanning sensors?
A sensor classified as passive, non-scanning and imaging method, is a camera, such as an aerial survey camera or a space camera, for example on board the Russian COSMOS satellite. An example of an active, non-scanning and non-imaging sensor is a profile recorder such as a laser spectrometer and laser altimeter.
