What is DHCP relay configuration?

You can use DHCP relay to get IP addresses for the computers on the trusted or optional network. With this feature, the Firebox sends DHCP requests to the IP address of up to three DHCP servers you specify.

Where is DHCP relay agent configure?

Select DHCP Relay. Select. Network. DHCP. DHCP Relay. .

  • Specify the IP address of each DHCP server with which the DHCP relay agent will communicate. In the. Interface. field, select from the drop-down the interface you want to be the DHCP relay agent. Select either. IPv4. or. IPv6.
  • Commit the configuration. Click. OK. and. Commit. .

    • What is DHCP and DHCP relay?

    A DHCP relay agent is a host or router that forwards DHCP packets between clients and servers. Network administrators can use the DHCP Relay service of the SD-WAN appliances to relay requests and replies between local DHCP Clients and a remote DHCP Server.

    What does IP DHCP smart relay do?

    The DHCP smart relay feature allows the DHCP relay agent to use secondary IP addresses when the DHCP server does not reply the DHCP-OFFER message. The relay agent initially encapsulates its primary IP address to the giaddr field before forwarding a request to the DHCP server.

    What is IP DHCP relay address?

    Relay Agent IP address: The IP address sent by the PC (0.0. 0.0) is replaced with the downlink IP address of the DHCP relay agent (1.1. 1.254), the IP address of the relay agent’s interface at which the DHCP Discover message was received.

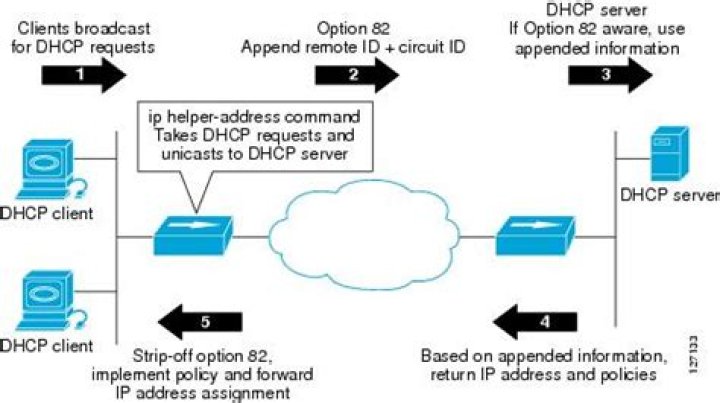

    Is IP Helper the same as DHCP relay?

    IP helper address: It’s the address of DHCP server located in another LAN from which hosts, DHCP request will be answered. DHCP relay is used to forward DHCP broadcast requests on LAN as a unicast packet to a central server, while ip helper-address is the command used to enable DHCP relay in routers.

    What is the difference between IP helper and DHCP relay?

    What is Relay Agent IP address?

    The DHCP relay agent is any TCP/IP host which is used to forward requests and replies between the DHCP server and client when the server is present on a different network. Relay agents receive DHCP messages and then generate a new DHCP message to send out on another INTERFACE.

    What is IP Helper DHCP?

    DHCP IP Helper addresses are IP addresses configured on a routed interface such as a VLAN Interface or a routers Ethernet interface that allows that specific device to act as a “middle man” which forwards BOOTP (Broadcast) DHCP request it receives on an interface to the DHCP server specified by the IP Helper address …

    How configure DHCP IP Helper Cisco?

    Configuring an IP helper address

    1. Enter the global configuration mode by issuing the configure terminal command. device# configure terminal.
    2. Enter the interface configuration mode.
    3. Add a helper address for the server.
    4. By default, an IP helper does not forward client broadcast requests to a server within the network.
