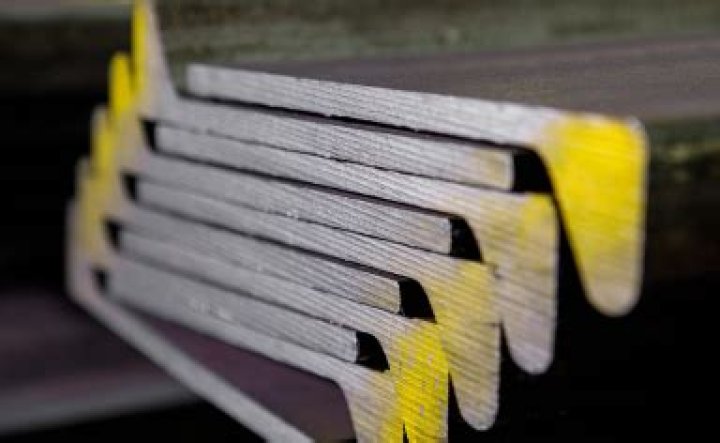

What is bulb flat steel?
Bulb flats are a hot-rolled piece of steel with one end having a “stem” sticking out. Compared to other forms of steel, such as angle or flat bar, bulb flat is stronger in terms of strength to weight ratio and are excellent for stiffeners for ship and barge building.
What are bulb flats used for?
Bulb Flats are used in ship and bridge building to reinforce steel plate. They feature a unique shape – flat, with a short, tapered flange on one side – which provides for easier cleaning, and there are no hidden recesses which you might encounter when reinforcing plate with Tees or angles.
What is Holland profile steel?
The Holland profile (form letter HP ) is a flat steel profile with a thickening on the edge of a flat side. This thickening (bead) runs over the entire length of the profile. Due to the bead, the Holland profile is also known as a bead profile or flat bead steel .
What are bulb plates?
: a structural metal plate reinforced by a thickening on one edge.
What is offset bulb plate?
Offset bulb flat sections Maritime bulb flats are made of maritime specialized steel grades. This shape is used as a stiffening rib when creating large sheet metal structures during the construction of ship hulls. Bulb flats are welded in a horizontal direction from the inner side of the hull.
What is bulb angle?
Definition of bulb angle : an angle iron with one edge thickened out into a bulbous rib.
What is bulb bar?
Definition of bulb bar : a rolled bar of iron or steel that is thickened along one edge so as to have a cross section bulbous at that edge.
What is a 25 degree beam angle?
A narrow beam angle of 25 degrees is known as a spot. Wider beam angles of 60 degrees are known as as flood and even wider beams are known as wide flood beams.
How wide is 60 degrees?
What is Beam Spread?
| Degree of Light | At 5 Feet | At 15 Feet |
|---|---|---|
| 40 | 3.6 feet | 10.8 feet |
| 45 | 4.05 feet | 12.15 feet |
| 60 | 5.4 feet | 16.2 feet |
| 90 | 8.1 feet | 24.3 feet |
What is the weight of angle?
MS Equal Angles : 25 x 25 x 3mm to 130 x 130 x 12mm
| Size in mm | Average Weight | |
|---|---|---|
| 25 x 25 x 3 | 1.10 | 0.30 |
| 25 x 25 x 4.5 | 1.60 | 0.49 |
| 25 x 25 x 5 | 1.80 | 0.50 |
| 25 x 25 x 6 | 2.10 | 0.60 |
How is MS sheet weight calculated?
∴ Weight of steel plate = Volume of steel plate x Density of steel. Weight of steel plate = 0.07 x 7850 = 549.5 Kg. Similarly, you can calculate the weight of different thicknesses of steel plates….Example 2:
| Thickness (mm) | Weight (Kg) |
|---|---|
| 8 | 62.8 |
| 10 | 78.5 |
| 12 | 94.2 |
| 14 | 109.9 |
