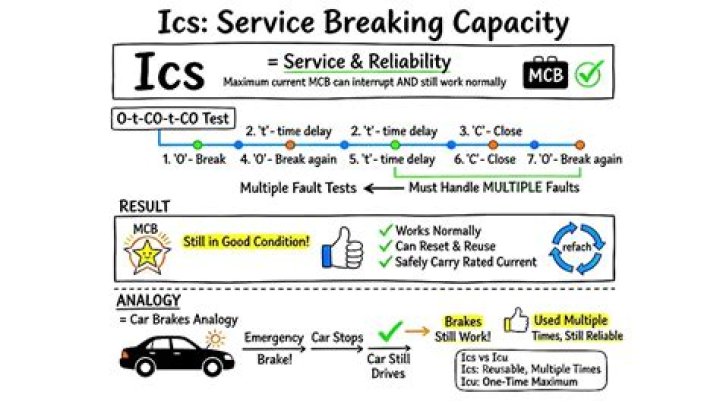

What is breaking capacity of circuit breaker?
Breaking capacity or interrupting rating is the current that a fuse, circuit breaker, or other electrical apparatus is able to interrupt without being destroyed or causing an electric arc with unacceptable duration.
What type is a BS 60947 2?
BS EN 60947-2 circuit-breakers They are used to protect power distribution circuits up to 1,000 V AC and 1500 V DC with current ratings of 0.5 A to 6,300 A. They use ‘miniature’ circuit-breakers (cbs), moulded case circuit -breakers (MCCBs) and air circuit- breakers (ACBs).
What is the short circuit capacity of a BS 3036 fuse?
In summary,they stated that fuses from 5 to 30 amps had a breaking capacity of 2ka and were S2a….See Also:
| Technical discussion forums | |
|---|---|
| · | Wiring and the regulations |
| · | Other and general engineering discussions |
| Archived categories |
What type is a 3036 fuse?
The requirements applicable to rewireable (semi-enclosed) fuses are specified in BS 3036: Semi-enclosed electric fuses. Semi-enclosed fuses are restricted to a.c. circuits. There are three basic types of BS 3036 fuse, categorized according to duty. These categories of duty are S1A, S2A and S4A.
How do you calculate breaking capacity?
Multiply the number of sets of electrical windings or other components by the voltage each offers. For example, if you are calculating the breaking capacity connected with a three-phase 520-volt transformer, multiply 3 by 520, giving 1,560 volts. Divide the volt-amperage running through the circuit by this voltage.
What is a BS 60947 3?
Full Description. This part of IEC 60947 applies to switches, disconnectors, switch-disconnectors and fusecombination units and their dedicated accessories to be used in distribution circuits and motor circuits of which the rated voltage does not exceed 1 000 V AC or 1 500 V DC.
What is the short circuit capacity of a Rewirable fuse?
16.5kA
Category of duty: AC21 60A >1989, 100A After 1989 (for 2, 3, 4, 6 and 8 way). The cartridge fuse offers a mid cost option between rewirable fuses and MCB’s. They have a short circuit rating of 16.5kA, which means that for the normal 100A single phase supply, no further consideration of fault level is necessary.
What is the short circuit capacity of a BS 3036 s1a fuse as given in the IET on site guide?
Cartrdige fuse to BS 1361 type 2 a staggering 33KA rated short ciruit capacity.
What is Rewirable fuse type?
Rewirable or Kit – Kat Type Fuses are a type of Low Voltage (LV) Fuses. They are most commonly used in house wiring, small industries and other small current applications. Rewirable Fuses consists of two main parts: a Fuse Base, which contains the in and out terminal, and a Fuse Carrier, which holds the Fuse Element.
What is Rewirable fuse?
Rewireable Fuses are the fuse carriers that contain a length of fuse wire, which is wrapped around the terminals, covering the space between carriers and pins, to complete the circuit. It is used in interrupting the circuit in conditions like over-current or short-circuits.
