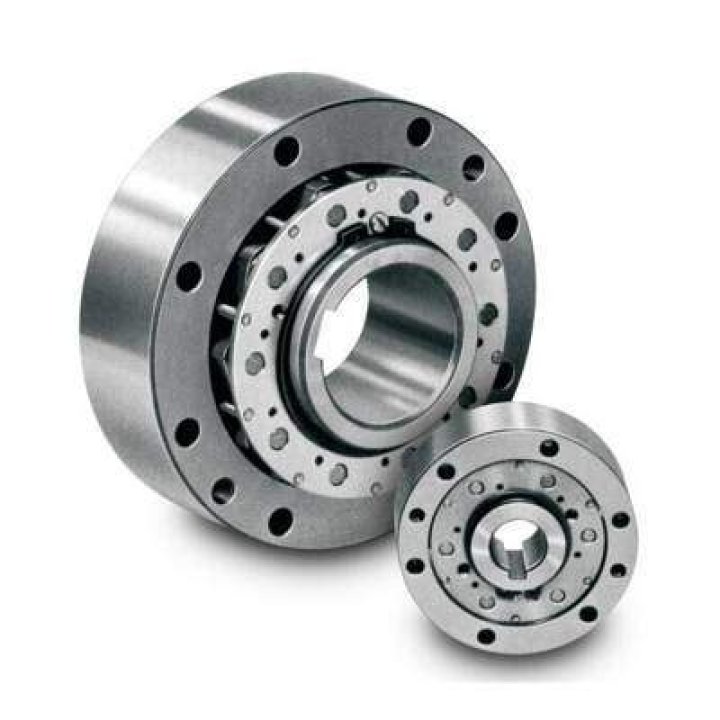

What is backstop clutch?
Backstop clutches are used as a safety measure to prevent reverse movement of incline conveyors, bucket elevators, or pump systems.
What does a sprag clutch do?
A sprag clutch has cam-shaped steel wedges (or sprags) that are placed at an angle and controls the one-way direction of movement. When the movement tries to go in the opposite direction an instant driving disengagement or locking occurs.
How much torque can a sprag clutch hold?
Sprag Clutch Elements Good for large orders & low to high torque needs: 1 to 2673 Nm.
What are the three types of overrunning clutches?
Most overrunning clutches are one of three types: roller ramp, sprag, or wrap spring. A relatively new device, called the wedge ramp clutch, incorporates the major benefits of these well-established types.
How does an overrunning clutch work?
Overrunning clutches, sometimes called freewheel clutches, are used to freewheel in one direction while driving in another direction of rotation. When the driven shaft is rotating faster than the driveshaft, the clutch mechanically disconnects the driveshaft from the driven shaft. This engages the clutch.
What is cam clutch?
Tsubaki Cam Clutch products are designed to transmit torque in one direction of rotation and overrun in the opposite direction of rotation. We offer various series of Cam Clutch products to address the many types of applications where they are most often used. …
How do I know if my sprag clutch is bad?
The sprag clutch is on the starter. If that goes you get a graunching noise or a nasty metalic bang when you hit the starter then the second time you hit the button the starter just spins without engaging the motor.
How does a sprag clutch work on a motorcycle?
A sprag clutch is a type of rolling element bearing that rotates freely in one direction and locks in place when turned in the opposite direction. This clutch uses spring loaded sprag rollers that allow one element to freewheel around the other until the direction is reversed.
How does a sprag clutch fail?
The cause of sprag failure is most likely due to low battery starts. Other factors can hasten sprag failure, including: Starting without the choke, Starting in gear, using an oil of too low viscosity(the lower the viscosity = a higher viscosity number /// 80w is less viscous than 20w).
What are overrunning clutches capable of?
Overrunning clutches, sometimes called freewheel clutches, are used to freewheel in one direction while driving in another direction of rotation. When the driven shaft is rotating faster than the driveshaft, the clutch mechanically disconnects the driveshaft from the driven shaft.
What is the function of overrunning clutch in the starting system?
A clutch that allows the driven shaft to turn freely only under certain conditions; for example, a clutch in an engine starter that allows the crank to turn freely when the engine attempts to run.
What does a Sprag do in a torque converter?
Simply put, a sprag is a one way clutch, functioning just as a ratchet does in your toolbox. It is locking in one direction and freewheeling in the other direction. Every torque converter manufactured by OEMs has a sprag. A functioning sprag is very important for a street car making 100-200 HP and 500-3000 rpms.
