What is back-to-back connection in HVDC?

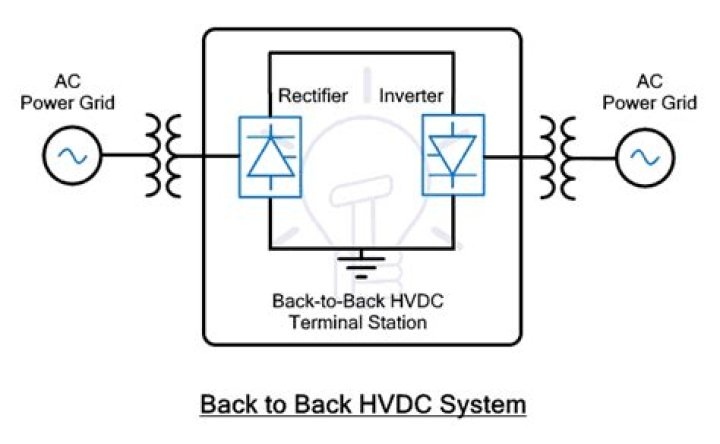

What is a back-to-back HVDC link? With a back-to-back HVDC link two independent neighboring transmission systems with incompatible electrical frequencies, exceeding short-circuit power levels or different operating philosophies are connected.
What is HVDC system explain briefly?
A high-voltage, direct current (HVDC) electric power transmission system (also called a power superhighway or an electrical superhighway) uses direct current (DC) for the transmission of electrical power, in contrast with the more common alternating current (AC) systems.
What are the main components of HVDC?
Main components of HVDC system are as under:
- DC line inductors,
- harmonic filters,
- converter transformers,
- a reactive power source,
- ground electrodes,
- a microwave communication link between the converter stations.
What are the different types of HVDC converters?
As for the technology of the HVDC transmission system, two main types of converters are: 1. line-commutated HVDC (LCC-HVDC), and 2. voltage-source HVDC (VSC-HVDC).
Why filters are used in HVDC?
An HVDC converter station always requires ac filters, the purpose of which is to mitigate voltage distortion and reduce telephone interference in the connected ac network. In addition the ac filters also play a vital part in reactive power support.
Which of the following statement is true corona loss increases with?
Where, f = Supply frequency δ = Air density factor r = Radius of the conductor d = Distance between the conductors Vph = Operating voltage of the transmission line Vc = Critical disruptive voltage Therefore, Corona loss ∝ supply frequency and Corona loss ∝ (Vph – Vc)² Vc ∝ r Therefore, corona loss increases with the …
What is HVDC explain bipolar HVDC system?
Bipolar DC Link: The voltage between the conductors is equal to two times the voltage between either of the conductors and earth. The voltage of the earthed electrodes is just half the voltage of the conductor used for transmission the HVDC. A bipolar HVDC system is described as a say ± 500 kV/ ± 400 kV/± 600 kV, etc.
How does HVDC transmission system work?
HVDC transmission utilizes a converter station at either end of the system. The valve at the beginning of the system converts alternating current to HVDC, the HVDC travels to the next location through a cable, and the valve at the end of the system converts the HVDC back to alternating current.
How does a HVDC transformer work?
An HVDC converter converts electric power from high voltage alternating current (AC) to high-voltage direct current (HVDC), or vice versa. HVDC is used as an alternative to AC for transmitting electrical energy over long distances or between AC power systems of different frequencies.
Which of the following statement is true in case of a HVDC system?
Lower Transmission Losses: HVDC transmission requires only two conductors. No such limitations exist in the case of HVDC line. Lesser Corona Loss and Radio Interference: Corona Loss directly proportional to frequency. Therefore in the DC line, corona loss will be lesser compared to the AC line.
What is commutation in HVDC?
Commutation failure (CF) is an adverse and frequent dynamic event in high-voltage direct current (HVDC) systems based on line-commutated converter technology. It is most often caused by AC system faults in the receiving-end grid [1].
What is bipolar HVDC?
Bipolar HVDC Transmission System : An HVDC link that uses two conductors for transmitting the power and current is known as bipolar links. Generally, these type of systems uses two conductors. One with positive polarity and the other with negative polarity.
