What is ATA IDE connector?
Parallel ATA (PATA), originally AT Attachment, also known as ATA or IDE is standard interface for IBM computers. The connection is used for storage devices such as hard disk drives, floppy disk drives, and optical disc drives in computers.
What is IDE connector in hard disk?
IDE, an acronym for Integrated Drive Electronics, is a standard type of connection for storage devices in a computer. Generally, IDE refers to the types of cables and ports used to connect some hard drives and optical drives to each other and to the motherboard.
What is a parallel ATA connector?
Parallel ATA (Parallel Advanced Technology Attachment or PATA) is a standard for connecting hard drives into computer systems. As its name implies, PATA is based on parallel signaling technology, unlike serial ATA (SATA) devices that use serial signaling technology. The cable for a SATA connection has seven conductors.
What does an IDE connector look like?

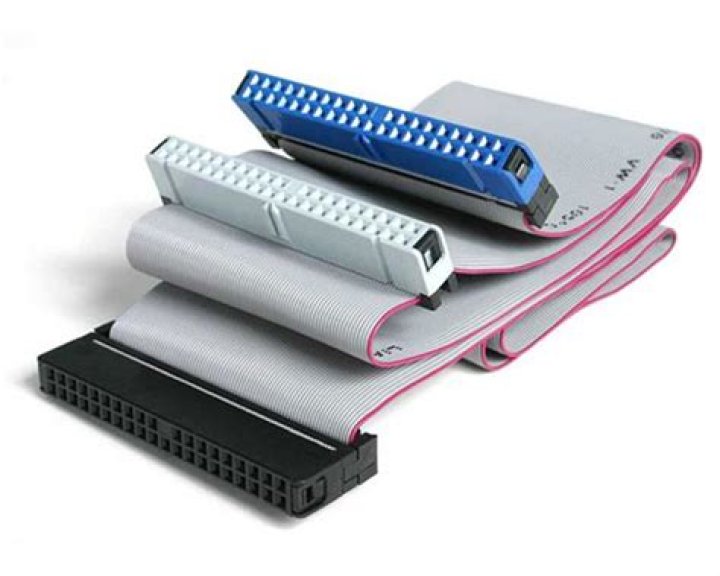

IDE consists of a 40-pin connector attached to a ribbon cable. 80-pin connectors were also introduced later. The connectors are black in a 40-pin connector while in an 80-pin connector, they come in 3 colors: blue – controller, gray – slave drive, and black – master drive.
What is ATA cable?
Short for Advanced Technology Attachment, ATA was approved on May 12, 1994, and is an interface that connects hard drives, CD-ROM drives, and other drives. The first ATA interface is now commonly referred to as PATA, which is short for Parallel AT Attachment after the introduction of SATA.
How do I connect my IDE hard drive to a USB port?
(1) Have IDE Hard Drive to connect with USB 2.0 to SATA & IDE CABLE (2) Have the external Power Adapter connect with 3.5” IDE HDD. (3) Power on the power adapter, connect the USB 2.0 to IDE & SATA Cable to the PC USB port, the PC can automatically detect the product and the 3.5” IDE HDD.
How do I connect an old IDE hard drive to my laptop?
You have five options to connect an old HDD to your computer:
- Connect it using a special USB adapter cable.
- Hack an external HDD.
- Build your own external HDD.
- Use a USB docking station for disk drives.
- Install the disk in your PC.
Is IDE and ATA the same?
While IDE and ATA are very closely related, they are not the same thing. IDE has been reverse-acronymed as PATA since the interface was a parallel connection using the ATA standard. SATA is a Serial ATA connection.
Is IDE the same as ATA?
The Answer IDE and ATA are not the same thing, just as SATA and ATA are not the same either. To be clear, IDE defined that a hard drive should have Integrated Device Electronics (I.e. a controller) onboard and communication with the host should be done according to the ATA specifications.
