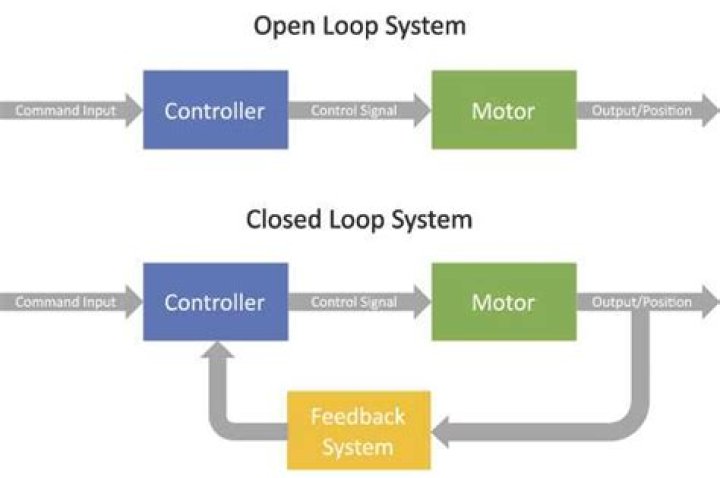

What is an example of an open loop system?
Another example of an Open Loop Control System which we use in our daily lives is a Washing Machine. The operations of soaking, washing, rinsing and drying are time based and do not depend on the cleanliness of the clothes or if the clothes are dry or not.
Is an example of closed loop system Mcq?
The overall gain of the transfer function increases with the positive value of feedback gain. The overall gain of the transfer function decreases with the negative value of feedback gain….4.6.
| Open-loop system | Closed-loop system | |
|---|---|---|
| Response | Fast | Slow |
| Effect of parameter variation and noise | More | Reduced |
Is air conditioner a closed loop system?
Closed-loop systems are designed to transfer heat through circulating water for air conditioning, heating, or process applications. In other HVAC applications, the closed loop water acts as the condenser for remote water-source heat pump installations.
What are the types of closed loop system?
Closed-loop control systems are classified into two types depending on the feedback signal nature such as positive feedback signal and the negative feedback signal.
What are some examples of system controls?
Examples of control systems in your day-to-day life include an air conditioner, a refrigerator, an air conditioner, a bathroom toilet tank, an automatic iron, and many processes within a car – such as cruise control.
What is the best example of a closed system?
A closed system allows only energy transfer but no transfer of mass. Example: a cup of coffee with a lid on it, or a simple water bottle.
Is electric kettle a closed loop system?
For example, if a kettle did not have a controller and it were switched on it would continue to boil the water indefinitely. By adding a controller, the boiling water (reference) is fed back to the input through the controller. When you add a controller in a feedback loop you create a closed-loop system.
What are the basic elements of a closed loop system explain?
The basic elements of the closed-loop control system include error detector, controller, feedback elements & power plant. When the control system includes a feedback loop, then the systems are known as feedback control systems. So the output can be controlled accurately by providing feedback to the input.
