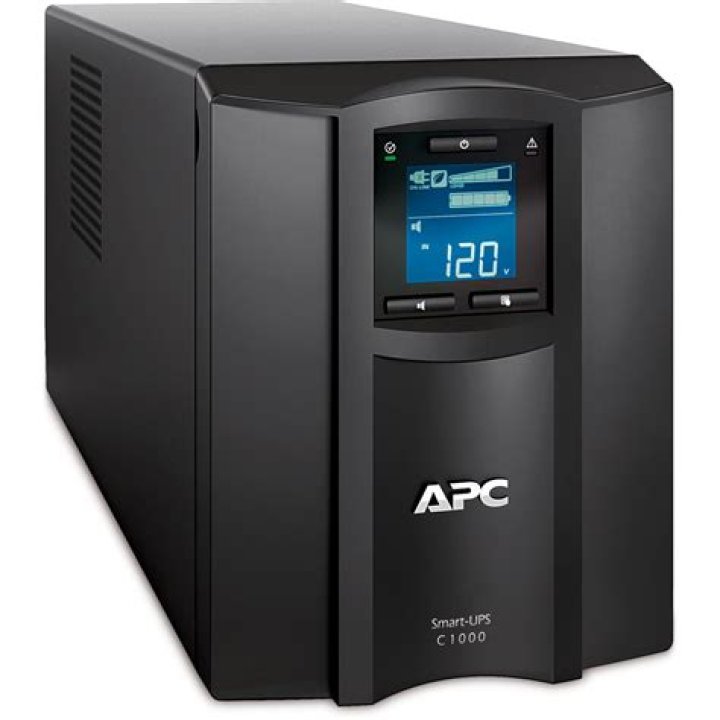

What is an APC Smart UPS 1000?

APC Smart-UPS 1000VA, 120V, LCD, 8x NEMA 5-15R outlets, w/SmartConnect port. Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Includes: USB cable, User manual.

How many batteries are in APC Smart UPS 1000?

2 batteries
Replacement UPS Battery Set for SMART-UPS SUA1000 APC – (2 batteries – 12V 12AH)

How do you calibrate APC Smart UPS 1000?

Network Management Card – From the “Tests” menu select “UPS”. Select “Runtime Calibration” and click “Apply”. LCD Screen – Go to “Test & Diags” and select “Battery Calibration”.

How do I change the battery in my APC Smart-UPS 1000?

How to Replace Batteries in APC Smart-UPS 1000

  1. Step 1: Unplug the Smart-UPS from the wall.
  2. Step 2: Disconnect the batteries.
  3. Step 3: Pop the front face off.
  4. Step 4: Lay the front face up on top of the UPS.
  5. Step 5: Remove the two phillips-head screws at the top corners of the battery compartment door on the front.

How do I reset APC Smart UPS 1000?

APC Smart UPS – How to reset / restart

  1. Turn off and unplug UPS from wall.
  2. Press and hold the OFF button again.
  3. You may see a quick flash of the LED’s and you should hear an audible “”click”” from the UPS.
  4. Turn UPS back on.

How do I do a self test on APC UPS?

To manually start a Self Test from the UPS:

  1. LCD Screen Models: Go to the “Test & Diags” menu, then select “Self Test”
  2. Legacy Models (No LCD Screen): Press and hold the “I/Test” button. After several seconds the UPS will switch to battery. You can then release the button and the test will continue to completion.

Should I discharge my UPS?

1 Answer. No, you should not deep discharge UPS without good reason. At least not the overwhelming majority of small UPS devices, including those sold by APC. They are generally using lead–acid batteries, neither designed nor expected to endure many full discharge-recharge cycles.
