What is adder and its types?
An adder is a device that will add together two bits and give the result as the output. There are two kinds of adders – half adders and full adders. A half adder just adds two bits together and gives a two-bit output. A full adder adds two inputs and a carried input from another adder, and also gives a two-bit output.
What do you mean by full adder?
Full Adder is the adder which adds three inputs and produces two outputs. The first two inputs are A and B and the third input is an input carry as C-IN. The output carry is designated as C-OUT and the normal output is designated as S which is SUM.
What is adder and subtractor in digital electronics?
In digital circuits, an adder–subtractor is a circuit that is capable of adding or subtracting numbers (in particular, binary). It is also possible to construct a circuit that performs both addition and subtraction at the same time.
What is the use of adder?
Adder and subtractor are basically used for performing arithmetical functions like addition, subtraction, multiplication and division in electronic calculators and digital instruments. They are also used in microcontrollers for arithmetic additions, PC (program counter) and timers.
What is 4bit adder?
Sum (Σ) outputs are provided for each bit and a resultant carry (C4) is obtained from the fourth bit. This adder features full internal look ahead across all four bits. A 4 x n binary adder is easily built up by cascading without any additional logic.
What are the two types of adder circuits?
Adders are basically classified into two types: Half Adder and Full Adder.
What is half adder and full adder in digital electronics?

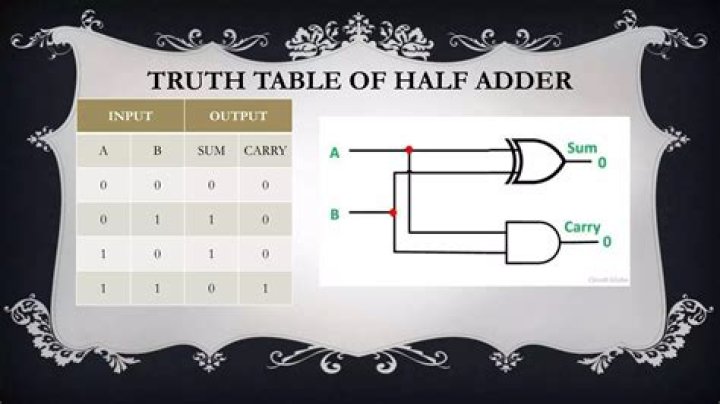

1. Half Adder is combinational logic circuit which adds two 1-bit digits. The half adder produces a sum of the two inputs. Full adder is combinational logical circuit that performs an addition operation on three one-bit binary numbers. The full adder produces a sum of the three inputs and carry value.
Which are the two types of adder circuits?
Full Adder is the circuit which consists of two EX-OR gates, two AND gates and one OR gate. Full Adder is the adder which adds three inputs and produces two outputs which consists of two EX-OR gates, two AND gates and one OR gate. The first two inputs are A and B and the third input is an input carry as C-IN.
What is 3 bit adder?
The operation of this 3 bit adder, the EX-OR between 3 bits sum will be generated and any two bits out of three will be logic 1 the carry will be generated. Here, it will be implemented by using 2 half adders. The half adder has an addition of 2 bits. By using this half adder we implement an 3 bit adder.
Where are adders found?
The adder is the most northerly member of the viper family and is found throughout Britain, from the south coast of England to the far north of Scotland. In Scandinavia its range even extends into the Arctic Circle.
What is the main difference between half adders and full adders?
Half Adder is combinational logic circuit which adds two 1-bit digits. The half adder produces a sum of the two inputs. Full adder is combinational logical circuit that performs an addition operation on three one-bit binary numbers. The full adder produces a sum of the three inputs and carry value.
