What is a tree in algorithm?

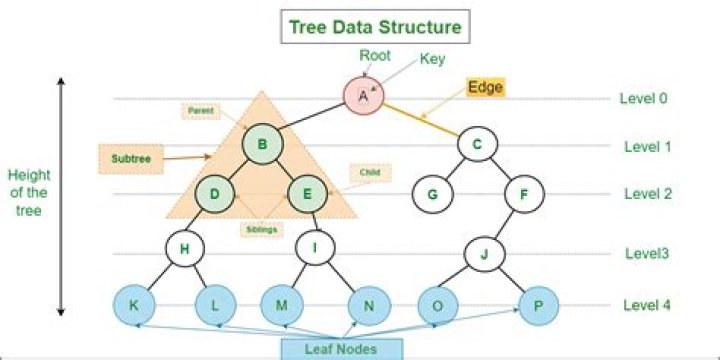

A tree is a hierarchical data structure defined as a collection of nodes. Nodes represent value and nodes are connected by edges. A tree has the following properties: The tree has one node called root. The tree originates from this, and hence it does not have any parent.
How are trees implemented?
Binary Tree Implementation A Binary tree is implemented with the help of pointers. The first node in the tree is represented by the root pointer. Each node in the tree consists of three parts, i.e., data, left pointer and right pointer.
What is tree in C programming?
Binary Tree in C is a non-linear data structure in which the node is linked to two successor nodes, namely root, left and right. Binary trees are a very popular concept in the C programming language. Tree in C. The requirement of a binary tree. Types of binary tree.
What is B tree algorithm?
A B-tree is a tree data structure that keeps data sorted and allows searches, insertions, and deletions in logarithmic amortized time. Unlike self-balancing binary search trees, it is optimized for systems that read and write large blocks of data. It is most commonly used in database and file systems.
What is tree example?
Another example of a tree structure that you probably use every day is a file system. In a file system, directories, or folders, are structured as a tree. Figure 2 illustrates a small part of a Unix file system hierarchy. The file system tree has much in common with the biological classification tree.
What is a complete tree?
A complete binary tree is a binary tree where nodes are filled in from left to right. In a complete binary tree: Every level except the last one is full.
How trees are stored in memory?
Each node of the tree contains three cells. The first cell contains the data to be stored; the second cell contains a pointer to the first cell’s left child, and the third cell contains a pointer to the first cell’s right child. A value of 00 as a pointer represents the nil pointer.
Is tree a connected graph?
A tree is a connected, acyclic graph, that is, a connected graph that has no cycles. A forest is an acyclic graph. Every component of a forest is a tree.
What are trees in graph theory?
In graph theory, a tree is an undirected graph in which any two vertices are connected by exactly one path, or equivalently a connected acyclic undirected graph.
What is a full tree?
Definition: a binary tree T is full if each node is either a leaf or possesses exactly two child nodes. Definition: a binary tree T with n levels is complete if all levels except possibly the last are completely full, and the last level has all its nodes to the left side.
