What is a quadrature oscillator?

What is a quadrature oscillator?

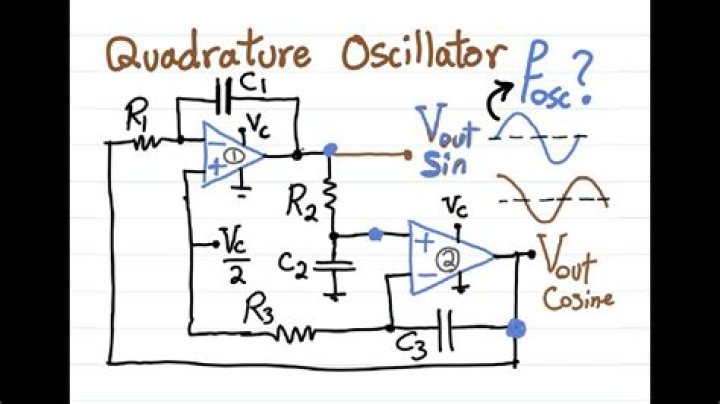

Quadrature oscillator. The quadrature oscillator is another type of phase-shift oscillator, but the three RC sections are configured so that each section contributes 90° of phase shift. The outputs are labeled sine and cosine (quadrature) because there is a 90° phase shift between op amp outputs (see Figure 8).

Why do we need a quadrature oscillator?

The proposed quadrature oscillators provide the following advantages: (i) two sinusoidal output signals of 90° phase difference are obtained simultaneously in each configuration; (ii) the oscillation conditions and oscillation frequencies are orthogonally controllable; (iii) the output terminals have the advantages of …

Can a opamp be used as oscillator?

Variable Op-amp Multivibrator These voltage controlled non-sinusoidal relaxation oscillators are generally limited to a few hundred kilo-hertz (kHz) because the op-amp does not have the required bandwidth, but nevertheless they still make excellent oscillators.

What is the possible method used in quadrature oscillator to remove distortion from the output waveform?

Explanation: The resistor at the input of non-inverting type amplifier is replaced with a potentiometer in order to eliminate any possible distortion in the output waveform.

How does a Wien bridge oscillator work?

The Wien Bridge Oscillator uses a feedback circuit consisting of a series RC circuit connected with a parallel RC of the same component values producing a phase delay or phase advance circuit depending upon the frequency. At the resonant frequency ƒr the phase shift is 0o.

What is amp oscillator?

Amplifier. Oscillator. Definition. An amplifier is a circuit which amplifies the weak signal and raises the amplitude of the signal. An oscillator is a circuit which generates the AC waveforms of particular frequency for providing source to an electronic circuit.

How many types of opamp oscillators are there?

two types
There are two types of op-amp based oscillators. This section discusses each of them in detail.

Why an oscillator differs from an amplifier?

The main difference between an amplifier and oscillator is that amplifier is a circuit that amplifies the input signal and an oscillator generates AC waveforms of a particular frequency that acts as a source for an electronic circuit. The signal from an amplifier can be periodic or non periodic.

How does RC oscillator work?

RC oscillators are a type of feedback oscillator; they consist of an amplifying device, a transistor, vacuum tube, or op-amp, with some of its output energy fed back into its input through a network of resistors and capacitors, an RC network, to achieve positive feedback, causing it to generate an oscillating …

How do you make a Wien bridge oscillator?

For this project, you will initially choose R1 = R2 = 10k, R3 = 10k, R3 = 2 R3 = 20k, and C1 = C3 = 100pF. Place and connect all the parts as shown in the above figure. Place a voltage probe marker at the output of the Op-Amp….Designing a Wien Bridge Oscillator.

What is frequency of a Wien bridge oscillator?

Wien-Bridge networks are low frequency oscillators which are used to generate audio and sub-audio frequencies ranging between 20 Hz to 20 KHz.
