What is a cambered truss?
During production, trusses improve on traditional rafter design by forcing an upward bend into the chords of trusses. This is referred to as a ‘camber’. The calculations are designed to ensure the truss eventually flattens out to provide straight chords once it is fully loaded. …
What is camber in architecture?
To camber means to slightly curve or bend. The word camber is typically used in describing a type of arch, truss or beam. In construction, there are many different types of arches and beams. Cambers are used in windows, doorways and interior structural devices such as trusses and arches.
What is a cambered floor?
February 26, 2019. Camber is inherent in all prestressed precast products. It is the upward deflection created by the prestressed forces in the strands located below the center of gravity. This is required to resist design loads and in the hollowcore plank it compresses the bottom more than the top.
Why is it that long span trusses are cambered?
Camber in trusses is usually intended to hide or compensate for dead load deflection. Since the truss member cutting is usually based on the undeflected truss shape, cambering can distort the truss so that the members do not fit well. Web joints and chord splices are no longer as Light fitting as they should be.
What is north light truss?
INTRODUCTION: NORTH LIGHT TRUSSES ARE TRADITIONALLY USED FOR SHORT SPANS IN INDUSTRIAL WORKSHOP-TYPE BUILDINGS. THEY ALLOW MAXIMUM BENEFIT TO BE GAINED FROM NATURAL LIGHTING BY THE USE OF GLAZING ON THE STEEPER PITCH WHICH GENERALLY FACES NORTH OR NORTH-EAST TO REDUCE THE SOLAR GAIN.
What is camber in shuttering?
Why camber is provided in shuttering? Camber is provided in the formwork for horizontal members to counteract the effect of deflection caused due to the weight of reinforcement and concrete placed over that.

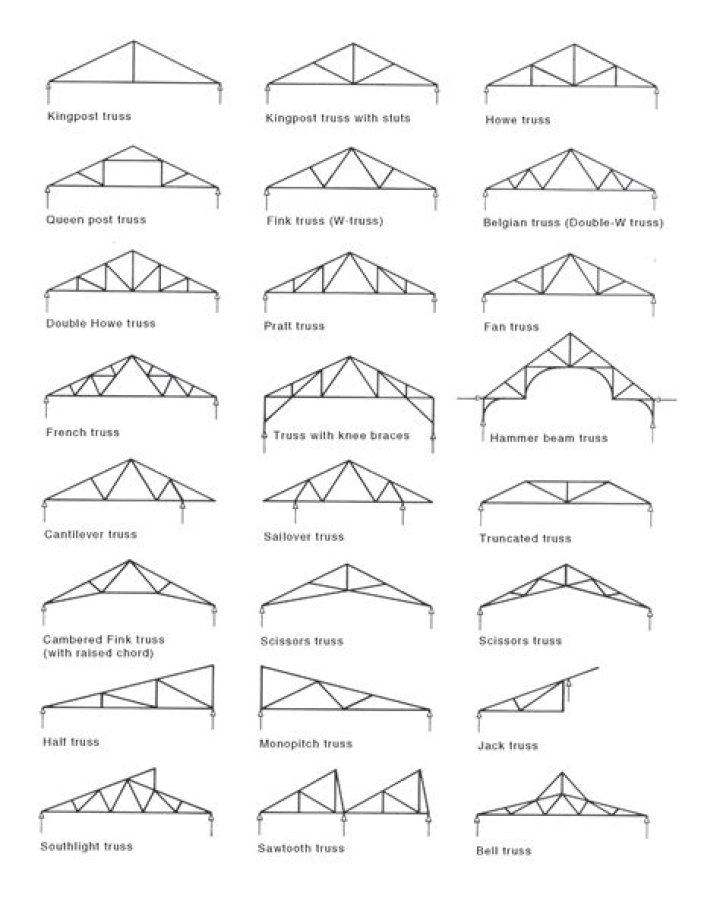

What are the 4 types of trusses?
Here are a few of the most common types of roof trusses that might be perfect for your build:
- Gable Trusses.
- Hip Truss.
- Scissor Roof Truss.
- Attic Truss.
- Mono Truss.
- North Light Roof Truss.
- Flat Truss.
- Gambrel Truss.
What are the types of trusses?
Simple truss – indicates a single triangular truss. These trusses are most often used as the roof trusses. Planar truss – as the name implies it is a two dimensional truss.
Why is a beam cambered?
The Need for Camber A cambered (curved) beam can support a greater weight, lessening the impact of heavy loads on certain parts of the structure. When a beam is cambered before adding the concrete, the weight will still sag the floor, but will sag to the point of the floor being leveled.
Why do beams have camber?
The Need for Camber A cambered (curved) beam can support a greater weight, lessening the impact of heavy loads on certain parts of the structure. When it comes time to pour concrete on a floor, if beams are not cambered (curved), the floor will permanently sag under the weight.
