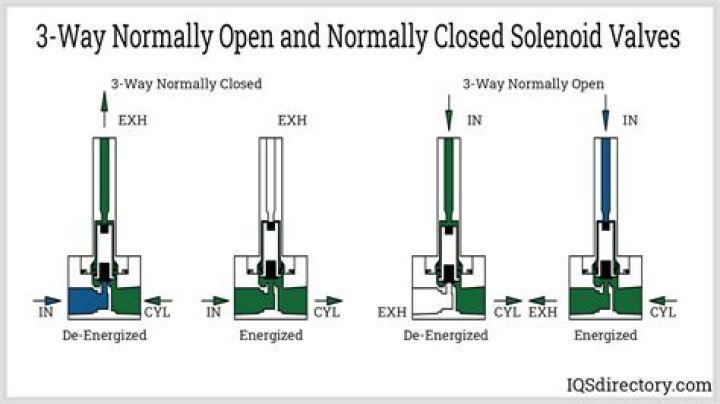

What is a 3 way solenoid valve?
Three-way solenoid valves are a type of electrical operating valve. Predominantly used in fluidics, solenoid valves control the direction of neutral gases, liquids, and technical vacuum. Commonly used with pneumatic cylinders and actuated valves, the valves safely open, close, release, divert and mix aggressive fluids.
What is a DC power solenoid?
DC solenoids are relays used for remote switching of electrical currents from 20A to 600A. Littelfuse offers a variety of DC solenoids and relays, such as solid state relays, plug-in relays, compact relays and much more.
Does a solenoid need DC?
Solenoids are devices that are capable of changing electrical energy into mechanical, or linear, energy. Solenoids that rely on electrical current fall into two main categories–solenoids that rely on AC (alternating current) as the source of power and solenoids that rely on DC (direct current) as the power source.
Are solenoids directional?
A 2-way solenoid valve has two ports, an inlet and an outlet. Flow direction is critical to ensure proper operation, so there is typically an arrow indicating the flow direction. A 2-way valve is used to open or close the orifice. Figure 3 shows an example of a 2-way solenoid valve.
Are solenoid valves polarity sensitive?
The simple answer is that polarity does not matter on solenoid valve coils.
What is a 3-way 2 position valve?
Three-way, 2-position valves typically feature a three-ported design allowing flow paths in several different configurations, while only connecting two ports in any single position. The valve consists of a series of tapered cylinders with diameters that get smaller from top to bottom.
How does a 3 wire solenoid work?
The externally switched (3-wire) solenoid is used in applications where an operator/driver manually turns a key switch that temporarily energizes the pull coil to pull in the plunger.
