What is 6GR welding position?

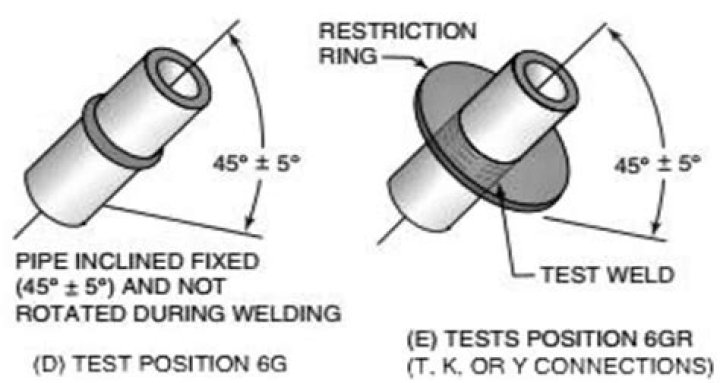

6GR- Important Welding Test Position This position is mainly used in the welding of Offshore platform structure such as offshore jacket, beams, decks, boat landing, underside and other parts of the offshore platform as per AWS D1. 1 code. This position qualifies a welder to weld TKY joints.

What are the 4 positions of welding?

The American Welding Society identifies four primary welding positions: Flat position. Horizontal position. Vertical position….What Is a Welding Position?

  • Flat position.
  • Horizontal Position.
  • Vertical Position.
  • Overhead.

What position of welding is a structural weld?

This type of welding is performed from the upper side of the joint. The face of the weld is approximately horizontal. Flat welding is the preferred term; however, the same position is sometimes called downhand….Flat Position Welding Procedures.

Plate thickness, in.Number of passes
5/8 to 7/83
7/8 to 1-1/84

What is the 3G welding position?

Welding in a 3G position means moving the torch vertically, up and down across a surface. This is in contrast with 1G (flat surface welding), 2G (horizontal welding), and 4G (overhead ceiling welding).

Why are some joints back gouged?

Tee joints in a thick plate are easier to weld and will have less distortion if they are grooved on both sides. Back gouging is a process of cutting a groove in the back side of a joint that has been welded. Back gouging can ensure 100% joint fusion at the root and remove discontinuities of the root pass.

What are the pipe welding positions?

The different welding positions for pipe welding are 1G, 2G, 5G and 6G positions. The 1G is horizontal rolled position weld. The 2G is Vertical Position. The 5G is horizontal fixed position.

What are the 5 basic weld joints?

There are five basic welding joint types commonly used in the industry, according to the AWS:

  • Butt joint.
  • Tee joint.
  • Corner joint.
  • Lap joint.
  • Edge joint.

How many welding positions are there?

Normally, there are four types of welding positions namely horizontal, flat, vertical, and overhead.

What is Fcaw welding process?

Flux-Cored Arc Welding (FCAW) uses the heat generated by a DC electric arc to fuse the metal in the joint area. The entire arc area is covered by a shielding gas, which protects the molten weld pool from the atmosphere. FCAW is a highly productive process for a range of plain carbon, alloy, stainless and duplex steels.

What are the positions of welding?

4 Basic Welding Positions

  • Flat Position (1G and 1F)
  • Horizontal Position (2G and 2F)
  • Vertical Position (3F and 3G)
  • Overhead Position.

Does Fcaw produce slag?

Flux-cored arc welding (FCAW or FCA) is a semi-automatic or automatic arc welding process. An externally supplied shielding gas is sometimes used, but often the flux itself is relied upon to generate the necessary protection from the atmosphere, producing both gaseous protection and liquid slag protecting the weld.
