What is 3DR radio telemetry?

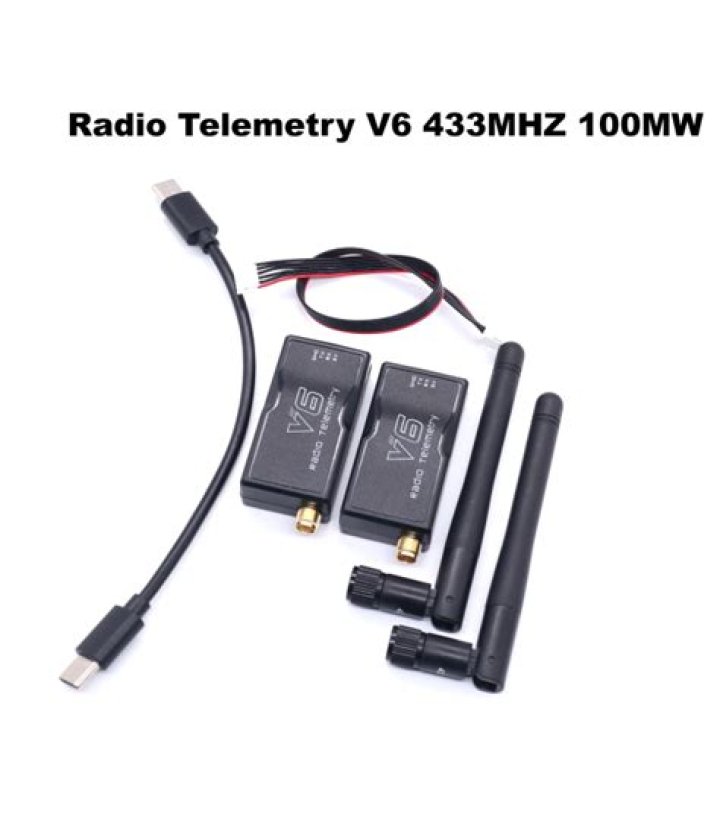

This 3dr telemetry kit allows you to link to a flight controller to a USB or UART-equipped device such as a computer, laptop or tablet supporting a USB connection (OTG). The Radio set lets you see live data, such as live GPS position overlaid on a map, system voltage, heading, waypoint navigation and much more.

How do I connect to telemetry?

Overview

  1. Connect one of the radios to your computer using the micro USB cable.
  2. Power the radio attached to the vehicle by plugging in the vehicle’s battery.
  3. Open the Mission Planner and go to the Initial Setup | Optional Hardware | SiK Radio page.
  4. Select the correct COM port and set the baud rate to 57600.

What is 3DR radio?

The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. It? s availabl in 433Mhz; and in the following configurations: serial board (for the air) and USB (for the ground).

How do I set up my Holybro telemetry radio?

Connecting the radio to your Windows PC is as simple as connecting the micro USB cable (which should have been included with the radio) to your PC. The necessary drivers should be installed automatically and the radio will appear as a new “USB Serial Port” in the Windows Device Manager under Ports (COM & LPT).

What is a SiK radio?

A SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).

Is telemetry the same as ECG?

While both EKGs and telemetry monitor a patient’s unique electrocardiogram for a period long enough to obtain information, the two pursuits aren’t identical. Whereas telemetry is a relatively general form of monitoring, EKG technicians perform a more specific type of monitoring.

How do I connect my mission planner to my drone?

Go to Windows Device Manager and find the COM port being used by the autopilot in the Ports listings. It will have the COM Port # you used to connect initially to Mission Planner. Right click and it will present “Update driver software” as one of the options. Click it.

How do I connect Arduino to mission planner?

  1. Step 1: install the MAVLink library in your Arduino IDE.
  2. Step 2: configure the Pixhawk.
  3. Step 3: understand the data flow.
  4. Step 4: request data from the Pixhawk.
  5. Step 5: listen to the streams from the Pixhawk.

How do I set up my SiK radio?

Using a FTDI-to-USB cable to configure SiK radios

  1. Connect your air radio with FTDI-to-USB cable to your computer USB port & note Com port #
  2. Connect the ground radio to a USB port on your PC & note COM port # In MP Flight Data tab, at top right, set baud to 57600 & select ground radio COM port #
