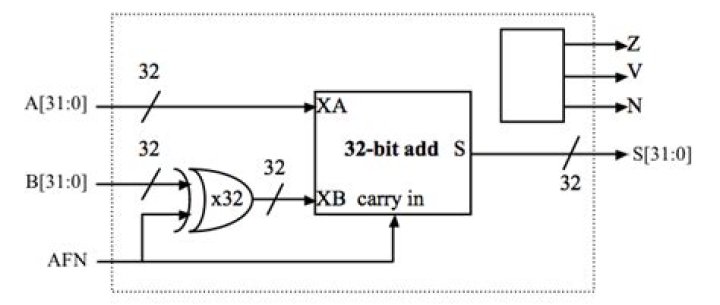

What is 32bit ALU?
It is a combinational circuit taking two 32-bit data words A and B as inputs, and producing a 32-bit output Y by performing a specified arithmetic or logical function on the A and B inputs.
What is ALU explain with the diagram?
The organization of arithmetic and logic unit is shown in the figure. 1) The arithmetic and logic unit is an 8-bit unit. 2) It performs arithmetic, logic and rotates operations. 3) It consists of the binary adder to perform addition and subtraction by 2’s complement method.
What is ALU design and explain a 4-bit ALU?
An ALU which acts as core part of CPU is a combinational digital electronic. The design of 4-bit ALU, performs three arithmetic and four logical operations. The four arithmetic operations include ADD,SUBTRACT and COMPARE. The four logical operations such as AND, OR, XOR and NOT.
How is ALU designed?
In some microprocessor architectures, the ALU is divided into the arithmetic unit (AU) and the logic unit (LU). An ALU can be designed by engineers to calculate many different operations.
What are the functions of the ALU?
function in digital computer The ALU performs simple addition, subtraction, multiplication, division, and logic operations, such as OR and AND. The memory stores the program’s instructions and data.
What are arithmetic logic gates?
An arithmetic circuit is a set of gates with a separate set of inputs for each number that has to be processed. The gates are connected so as to carry out an arithmetic action and the outputs of the gate circuit are the digits of the result (addition, subtraction, multiplication, or division).
How is ALU helpful in CPU?
An arithmetic logic unit (ALU) is a digital circuit used to perform arithmetic and logic operations. It represents the fundamental building block of the central processing unit (CPU) of a computer. The control unit moves the data between these registers, the ALU, and memory.
What are the 3 components of the CPU?
The three logical units that make up the central processing unit are the arithmetic and logic unit (ALU), main storage, and the control unit.
What is the responsibility of the logical unit in the CPU?
To control flow of information.
