What grade bolt is a A325?
grade 5
As a comparison, the ASTM A325 bolt is roughly equivalent to the SAE grade 5. A grade 8 bolt would be one that meets ASTM A490 standards. The A325 bolt strength, or SAE grade 5 bolt strength, is usually used for structural bolting projects.
What does A325 mean on a bolt?

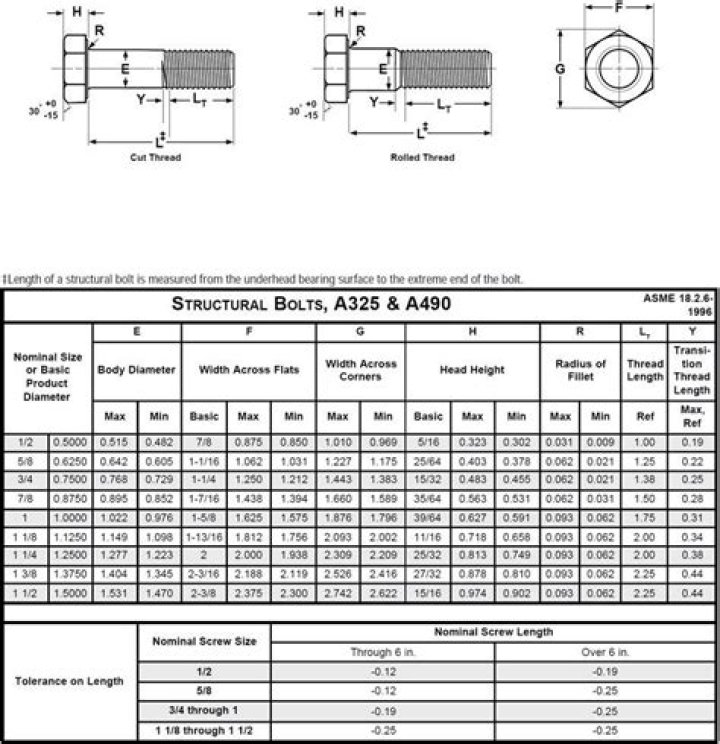

ASTM A325 is an ASTM International standard for heavy hex structural bolts, titled Standard Specification for Structural Bolts, Steel, Heat Treated, 120/105 ksi Minimum Tensile Strength. It defines mechanical properties for bolts that range from 1⁄2 to 11⁄2 inches (13 to 38 mm) in diameter.
Is A325 a high strength bolt?
Prior to its withdrawal in 2016, the ASTM A325 specification covered high strength heavy hex structural bolts from 1/2″ diameter through 1-1/2″ diameter. These bolts are intended for use in structural connections and therefore have shorter thread lengths than standard hex bolts.
Is Grade 8 stronger than A325?
A325 bolts are typically manufactured from a medium carbon steel (although they can be made from an alloy) while SAE grade 8 bolts are made from a medium carbon alloy steel. Grade 8 bolts are significantly stronger than an A325. An ASTM specification with similar strength properties to grade 8 is ASTM A490.
What nut goes with A325 bolts?
Recommended Nuts and Washers The recommended grade of nut for an ASTM A325 structural bolt is ASTM A563 Grade D, DH, or C. ASTM A194 2H is also an acceptable substitute. These ASTM grades are all high strength and go through a heat treating process required to develop their mechanical characteristics.
Is A325 galvanized?
ASTM A325 type 3 Hex Bolts are one type of fasteners that are used in various industrial applications. The finishing of the fasteners varies and the ASTM A325 anchor bolts and others can be galvanized as one type of finish. The galvanizing offers an extra layer of corrosion resistance to the bolts.
What nuts go with A325 bolts?
Are A325 bolts galvanized?
Which is stronger A325 or A490?
As mentioned earlier, Grade A490 requires a higher minimum tensile strength (150,000 PSI), making it stronger than Grade A325. Therefore, jobs that require a stronger bolt typically use Grade A490.
What bolts are the strongest?
Commercial-grade 8 bolts are the strongest option available. They’re made from medium carbon alloy steel and have markings that include six raised dashes. The psi of the bolt is 150,000, meaning that it can withstand great deals of pressure because of the way it was quenched and tempered.
