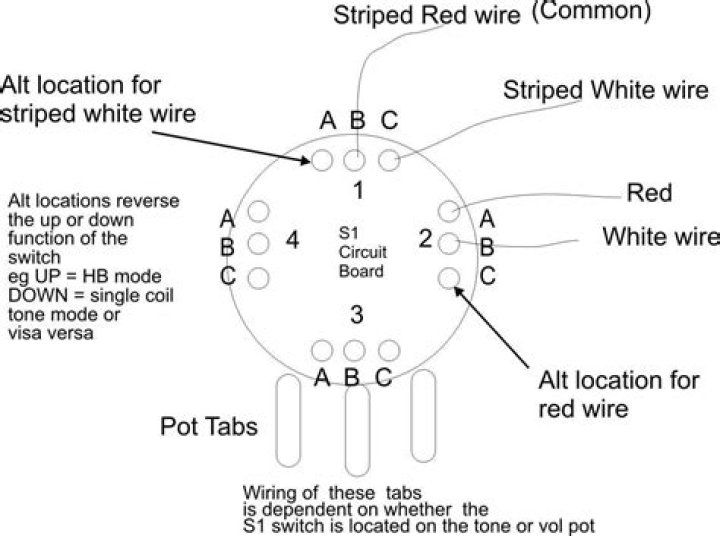

What does Strat S1 switch do?
The short answer is that it gives you more tonal options by offering extra pickup-wiring configurations. Further, S-1 switching does this without significantly altering the appearance of an instrument, because it’s a “push” switch built into a single volume or tone control knob.
What is a 5 way switch for on a guitar?
A pickup selector switch found on certain electric guitars that has five positions, and therefore allows for five combinations of pickups. This is the switch most commonly found on Fender Stratocasters and other guitars with three single-coil pickups.
What does the S1 switch do on a tele?
A: On a Telecaster, such as the new Fender American Deluxe Telecaster, pressing in the S1 switch built-into the volume knob puts the two pickups in series when the blade switch is in the middle position (normally they would be in parallel).
What does this switch on my guitar do?
The switch decides which pickup will transfer the vibrations of the strings into an electric signal. Knowing which position of the toggle switch uses which pickup(s) is extremely important as every pickup sounds completely different.
What is the difference between series and parallel pickups?
With series wiring, the output of one pickup goes into the input of another pickup, while with standard parallel wiring, each pickup takes its own path to the output. In the first, the two pickups are wired in parallel, so both pickups’ inputs and outputs are connected together.
How does a Telecaster switch work?
Essentially, the Telecaster 3-way switch consists of two 2-way switches on one lever. On a Tele, each of the two pickups uses its own stage to achieve the “both pickups together in parallel” middle position.
Is there such a thing as a 5 way switch?
The 5-way Strat switch is the most common switch you’ll find in Stratocaster guitars. Finally, in 1977 Fender made the 5-way Strat switch a standard feature in their guitars. Both 3-way and 5-way switches are wired the same. The only difference is the 5-way has a few more indents (Fig 4).
How does a 4 way switch work on a tele?
4-Way Switching For Your Tele. We get asked about 4-Way Switching a lot. It’s a simple mod that when added to your Telecaster, puts your pickups in Series, instead of Parallel. You can get a pretty beefy tone with both pickups on like this, and it adds a new dimension to your favorite guitar.
What are the 3 knobs on my guitar?
There are generally three controls on an electric guitar. These include a “pickup switch” for changing between the neck and bridge pickup, a “Volume knob” for adjusting the volume output to the amp, and a “tone Knob” for adjusting the treble frequency output.
Are pickups louder in series or parallel?
On a stacked pickup, series and parallel are both hum-free sounds with series being the louder and fuller of the two. The series sound replicates the sound of a single coil but without the hum. Parallel is a cleaner, lower-output, hum-canceling single coil tone.
