What does Raymarine SeaTalk do?

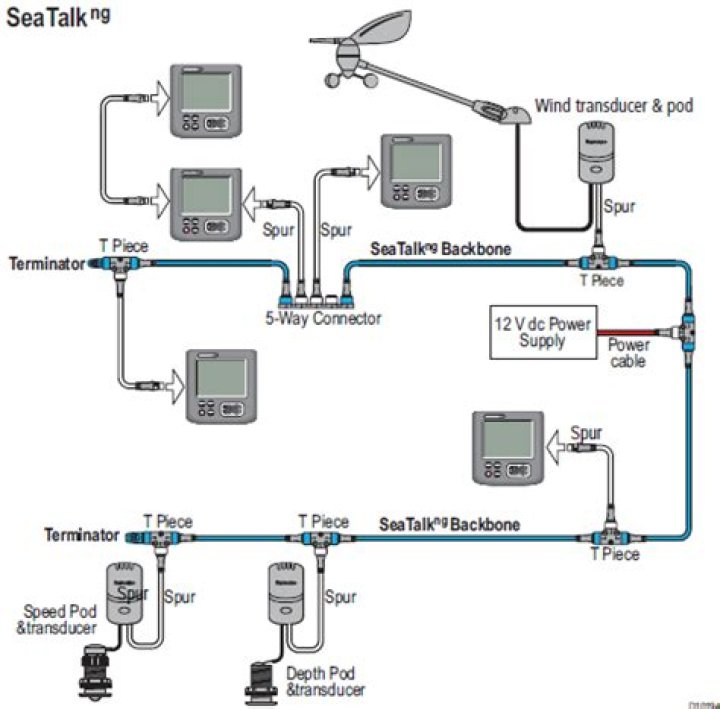

SeaTalkng is an interconnection bus for Raymarine products. Small diameter cable connectors are used throughout the system to make installation easier. There’s a wide range of cable lengths, all with over-moulded plugs, so there is no need to cut or splice cables.
Is SeaTalk the same as NMEA 2000?
Raymarine’s SeaTalkNG is Raymarine’s proprietary version of NMEA 2000 cabling. It’s compatible with NMEA 2000’s standard DeviceNet cabling through the use of adapters.
What is SeaTalk interface?
SeaTalk is a simple interface for networking Raymarine/Autohelm marine equipment so that all devices of a ship can exchange and share their data. SeaTalk is a proprietary solution of Autohelm and not compatible with NMEA or CAN. Unfortunately Raymarine keeps the technical details of SeaTalk secret.
Is SeaTalk the same as NMEA 0183?
There is a common misunderstanding that SeaTalk1 (ST1) is NMEA 0183, but unfortunately, this is not the case. SeaTalk 1 is a proprietary system designed by Raymarine. Whilst they both operate on a serial data protocol, NMEA 0183 and ST1 do not share any other similarities.
How long has NMEA 2000 been around?
The NMEA 0183 standard has been in use for over 30 years. It transmits data between instruments in plain language text sentences, via a one-to-one serial connection between them.
Is SeaTalk a NMEA?
Does Raymarine support NMEA 2000?
Raymarine’s proprietary cable system for use in NMEA 2000 networks. The design provides two advantages. First, the connector collars are retained on the product which allows for a smaller cable diameter making installations easier.
What is Raymarine Stng?
STNG is a cabling and connection system compatible with NMEA 2000. One of the advantages of the STNG system is that the connector collars are retained on the product which allows for a smaller cable diameter making installations easier.
How do you wire a NMEA 0183?
When wiring NMEA 0183 devices, follow these guidelines:
- Transmit (Tx) (+) should connect to a receive (Rx) (+)
- Tx (-) should connect to a Rx (-)
- Rx (+) should connect to a Tx (+)
- Rx (-) should connect to a Tx (-)
Can NMEA 0183 convert to NMEA 2000?
The NMEA 0183 Gateway allows you to connect NMEA 0183 equipment to a NMEA 2000 network and vice versa. It has a bi-directional converter with wide support of message types including AIS and autopilot.
What is the part number for the Raymarine SeaTalk 1 to Seatalk NG?
Raymarine SeaTalk 1 to SeaTalk ng converter kit Part Number: E22158 The SeaTalk 1 to Seatalk ng converter allows select SeaTalk 1 devices to interface and communicate on the Raymarine SeaTalk ng data network. It is compatible with legacy ST40, ST60+, Raystar 125 GPS sensors and LifeTag Wireless Man Overboard Systems.
Is the raystar 125 compatible with SeaTalk instruments?
The Raystar125 is fully compatible with Raymarine’s SeaTalk instruments and auto-pilots (SeaTalk or NMEA0183). The raymarine Raystar 125 delivers accuracy better then 3 meters by decoding Satellite Differential correction signals from the WAAS (Wide Area Augmentation System.)
What GPS antennas work with SeaTalk?
Raymarine Raystar E32119 125+ GPS Antenna with SeaTalk, NMEA 0183, and NMEA 2000 Data Outputs Brand: Raymarine 4.0 out of 5 stars3 ratings Currently unavailable. We don’t know when or if this item will be back in stock. Self-contained GPS Antenna/Receiver WAAS Enabled Data output can be configured for SeaTalk, NMEA 0183, or NMEA 2000
