What does RAID 10 mean?
Redundant Array of Independent Disks Mode

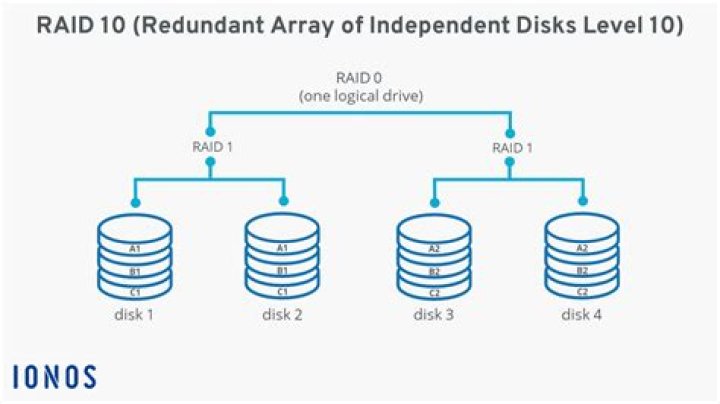

(Redundant Array of Independent Disks Mode 10) A RAID subsystem that increases safety by writing the same data on two drives (mirroring), while increasing speed by interleaving data across two or more mirrored “virtual” drives (striping).
Which is better RAID 6 or RAID 10?
RAID 6 uses less storage A RAID 10 array can only store half of its total disk capacity in data, as the other half is used by the mirror. A RAID 10 array dedicates half its capacity to protection no matter how many disks are used. But the percentage of usable capacity increases as you add disks to a RAID 6 array.
Which is faster RAID 0 or RAID 10?
We should note that at the same capacity, rather than the same number of spindles, RAID 10 has the same write performance as RAID 0 but double the read performance – simply because it requires twice as many spindles to match the same capacity.
Which is faster RAID 5 or RAID 10?
When you have applications that require fast read/write operations, RAID 10 is the right choice because it doesn’t manage parity, so no checks are necessary. In fact, the read performance of RAID 10 is twice as fast as RAID 5.
Is RAID 10 a fault tolerant?
RAID 10 fault tolerance is more. On RAID 10, since there are many groups (as the individual group is only two disks), even if three disks fails (one in each group), the RAID 10 is still functional.
Does RAID 10 improve performance?
The advantages of RAID 10 are: Offers improved performance. Fast as you can read and write data simultaneously. Provides excellent security.
Does RAID 10 have fault tolerance?
Whats the fastest RAID?
RAID 0
RAID 0 is the only RAID type without fault tolerance. It is also by far the fastest RAID type. RAID 0 works by using striping, which disperses system data blocks across several different disks.
Is RAID 5 or 10 better?
The biggest difference between RAID 5 and RAID 10 is how it rebuilds the disks. Compared to RAID 10 operations, which reads only the surviving mirror, this extreme load means you have a much higher chance of a second disk failure and data loss. Remember to always use identical disks when creating a RAID 10 array.
