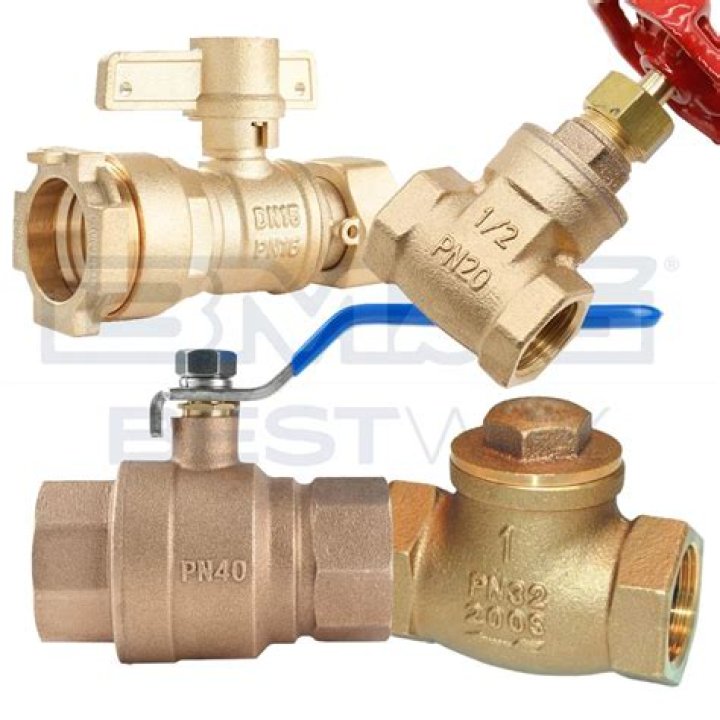

What does PN 40 mean on a valve?

What does PN 40 mean on a valve?

PN is an acronym for “Pressure Nominale”. Following international flange standards such as ISO 7005-1 or DIN 2501, PN10, PN16, PN25, and PN40 specify both pressure class in pressure bars and metric flange dimensions that use the metric measuring system.

What does pn6 mean?

PE pipes are produced in different pressure grades (PN grades), which indicates the pressure in bars the pipe can support with water at 20 oC. The pressure grades available according to European standards are. PN 2.5 – max pressure 2.5 bar. PN 4 – max pressure 4 bar. PN 6 – max pressure 6 bar.

What does pn20 mean?

1500. 2500. Flange Pressure Nominal (PN) 20.

Are PN10 and PN16 flanges the same?

Note: PN10/16 – Some flanges are denoted PN10/16. These refer to the fact that either PN10 or PN16 flanges will fit, as the drillings for many sizes are the same.

What is PN in pressure rating?

Pressure Nominal
Pressure Nominal (PN) is a term used to describe the pressure that a PE Pipe is designed to safely withstand. A pipe’s PN number describes the nominal pressure in bars that a pipe can support with water at 20oC.

What does PN and DN mean?

Nominal diameter (DN) and nominal pressure (PN)

What is the difference between PE100 and PE80?

PE100 offers additional long term strength and performance over PE80 while allowing for thinner pipe walls for the same operating pressure. PE100 uses less polymer and provides for a larger bore and increased flow capacity.

What does PN stand for in flanges?

nominal pressure
Nominal diameter (DN) and nominal pressure (PN)

What does dn50 mean?

For example, a DN 50 pipe denotes, according to EN 10255, a pipe with the external diameter of 60.3 mm and a wall thickness of 3.65 mm (resulting internal diameter 53 mm).

What does DN mean in flanges?

DN stands for ‘Diameter Nominal’. Put simply, it is a rough translation of mm from imperial sizes, assuming that an inch is 25mm. We refer to a 12″ flange as DN300, when in fact it is 304mm.
