What does centrosymmetric mean in chemistry?
In crystallography, a centrosymmetric point group contains an inversion center as one of its symmetry elements. A polar point group is one whose symmetry operations leave more than one common point unmoved. A polar point group has no unique origin because each of those unmoved points can be chosen as one.
What are centrosymmetric vibrations?
Centrosymmetric is related to the site symmetry in which a certain atom is placed. Such site symmetry contains an inversion center as one of its symmetry elements. For centrosymmetric crystals and molecules IR-active vibrations are not Raman-active and vice versa (mutual exclusion principle).
How it can be judged that a crystal is centrosymmetric?
Centrosymmetric: A point group which contains an inversion center as one of its symmetry elements is centrosymmetric. In such a point group, for every point (x, y, z) in the unit cell there is an indistinguishable point (-x, -y, -z).
Which orbitals are centrosymmetric?
Orbitals with a center of symmetry have even (gerade) symmetry with respect to inversion, i.e. if the coordinates are inverted so that (x,y,z)→(−x,−y,−z) , the orbital is coincident with itself exactly.
What is the meaning of non-centrosymmetric?

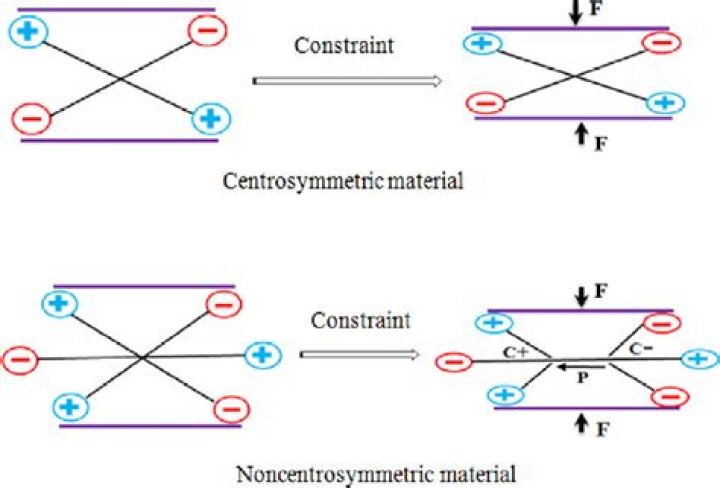

Definition. A centrosymmetric material has points of inversion symmetry throughout its volume. A material that does not is said to be non-centrosymmetric. This is a key requirement for piezoelectric materials: they must be non-centrosymmetric.
Are tetrahedral molecules Centrosymmetric?
[Cu(NH3)4]2+ is a tetrahedral complex and is therefore non-centrosymmetric. Since it is non-centrosymmetric, it is not Laporte forbidden. [Cu(H2O)6]2+ is an octahedral complex whose d-d transitions are Laporte forbidden.
What is inversion crystallography?
inversion axis In crystallography, an axis of symmetry which can be inverted through 180° about its centre in order to achieve a higher degree of symmetry for the crystal. Thus, an axis of two-fold symmetry on inversion every 90° becomes an axis of four-fold symmetry.
What are systematic absences in crystallography?
Definition. One speaks of systematic absences or extinctions when the structure factor is zero, due either to the centring of the lattice or to the presence of glide or screw symmetry elements.
Is c1 point group polar?
While the simplest point group, C1, leaves all points invariant, most polar point groups will move some, but not all points. A point group with more than one axis of rotation or with a mirror plane perpendicular to an axis of rotation cannot be polar.
