What does active low and active high mean?

What does active low and active high mean?

Simply put, this just describes how the pin is activated. If it’s an active-low pin, you must “pull” that pin LOW by connecting it to ground. For an active high pin, you connect it to your HIGH voltage (usually 3.3V/5V). For example, let’s say you have a shift register that has a chip enable pin, CE.

What does active low reset mean?

R is an Active-LOW Reset pin. When the Reset pin gets a LOW signal, it resets the flop to remember a 0, or LOW value. When it gets a LOW signal, it sets the flop to remember a 1, or HIGH value.

Why is active low?

The primary advantage to active low is safety. It is used widely in the C&I world in situations where a lost signal would be devastating. One example would be the water level of a boiler being low, another would be an emergency stop, another would be low fuel pressure.

How do you indicate an active low?

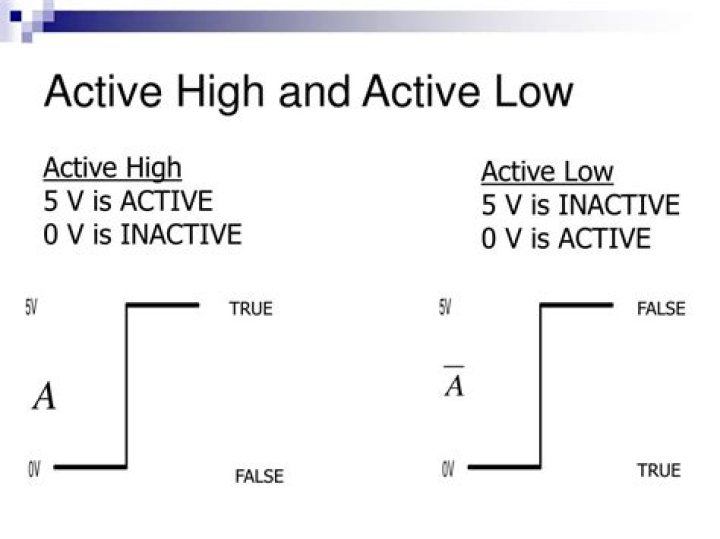

The name of an active-low signal is historically written with a bar above it to distinguish it from an active-high signal. For example, the name Q, read “Q bar” or “Q not”, represents an active-low signal. The conventions commonly used are: a bar above (Q)

What is an active high signal?

An active high device is a device that either outputs a HIGH signal when triggered on or that accepts a high signal as input to turn on. It really depends on whether the device is an input or an output device.

What is Active high SR latch?

In an active-high latch, both the SET and RESET inputs are connected to ground. When the SET input goes HIGH, the output also goes HIGH. When the SET input returns to LOW, however, the output remains HIGH. The output of the active-high latch stays HIGH until the RESET input goes HIGH.

What does active low mean and what is an example of an active low circuit?

A classic example is the NOR gate logic chip. A NOR gate is an active low device. This means that it only turns on an output when fed 0V, or an signal below 1/2 of the supply voltage (which would then be read as a logic 0 signal).

Is 0 high or low?

Logic 0 or Logic 1 A binary 1 is also referred to as a HIGH signal and a binary 0 is referred to as a LOW signal. The strength of a signal is typically described by its voltage level.

What does high and low mean in electronics?

A “low” is a voltage lower than or equal to the maximum low input voltage (VIL) given in the datasheet. A “high” is a voltage higher than or equal to the minimum high input voltage (VIH) given in the datasheet.

What is active low relay?

All of these 2,4, or 8 relay boards input controls are Active LOW, meaning that setting a pin LOW turns them ON. To assure that no relays activate at Reset or Power-On until you want them to, the initialization sequence in SETUP should be: digitalWrite(Relay, HIGH); pinMode(Relay, OUTPUT);

What is active high and active low SR latch?

Active-high circuit: Both inputs are normally tied to ground (LOW), and the latch is triggered by a momentary HIGH signal on either of the inputs. Active-low circuit: Both inputs are normally HIGH, and the latch is triggered by a momentary LOW signal on either input.

What is active low latch?

An active low SR latch (or active low SR Flip Flop) is a type of latch which is SET when S = 0(LOW). An active low SR latch is typically designed by using NAND gates. The logical circuit for a SR latch is shown below. NAND gate always gives output 1 when at least one of the inputs is 0.
