What does a high voltage relay do?
High voltage relays are electromechanical devices used to switch high voltage (> 1kV) signals. A high voltage relay’s contacts are typically contained in a vacuum enclosed by glass or ceramic, which prevents the contacts from arcing.
What is a voltage relay?
A relay that detects when the voltage in an AC circuit reaches a preset voltage. Voltage relays are used to detect rapid increases in voltages due to generator failure, low voltages caused by power interruptions or short circuits, etc.
What are the 5 different types of relay?
There are different types of relays like:
- Electromagnetic Relays.
- Latching Relays.
- Electronic Relays.
- Non-Latching Relays.
- Reed Relays.
- High-Voltage Relays.
- Small Signal Relays.
- Time Delay Relays.
What is relay and its types?
Relays are electrically operated switches. They are used to control a circuit by a separate low-power signal or to control several circuits with one signal. Relays were first used in long distance telegraph circuits as amplifiers. The three main types of relays are electromechanical, solid-state, and reed.
What is the purpose of a relay?
Relays are switches that open and close circuits electromechanically or electronically. Relays control one electrical circuit by opening and closing contacts in another circuit. As relay diagrams show, when a relay contact is normally open (NO), there is an open contact when the relay is not energized.
Why relay is used?
Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal.
What is under and over voltage relay?
Over/Under Voltage Relays provide protection to equipment where an over or under voltage condition is potentially damaging. They are designed to energize when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
What is DC relay?

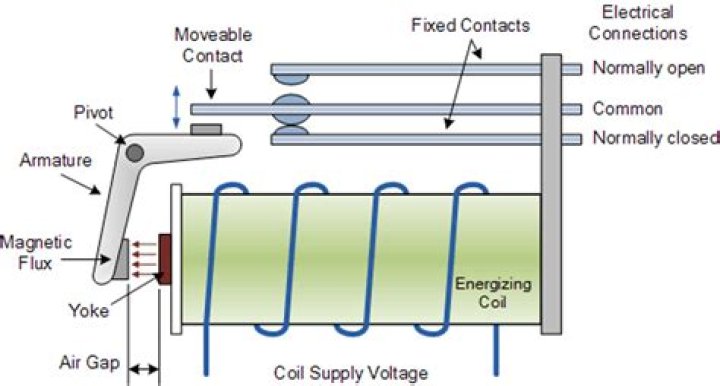

Direct current (DC) is steady and never reverses. A DC relay uses a single coil of wire wound around the iron core to make the electromagnet. Once the current is turned off and the iron core is no longer magnetized, the spring-loaded lever returns to a relaxed position and the electrical contacts are switched back.
How are relays classified?
In general, relays classification is dependent on the electric capacity which is activated by current, power, voltage, and many other quantities. Classification is based on the mechanical capacity activated by the speed of gas or liquid outflow, pressure.
When would you use a 12V relay?
12V DC relay switches are the best solution for full voltage applications, as they allow a low current flow circuit to control a high current flow circuit, like a vehicle’s horn, headlights, auxiliary lamps, fan motors, blower motors and countless pieces of equipment existing on vehicles today.
How a relay works 12V?
Relays install between the power source and the electrical accessory requiring on/off power. When the relay is energized, the high current to operate the accessory flows from the power source, through the relay, and directly to the part.
