What causes quadrantal error?

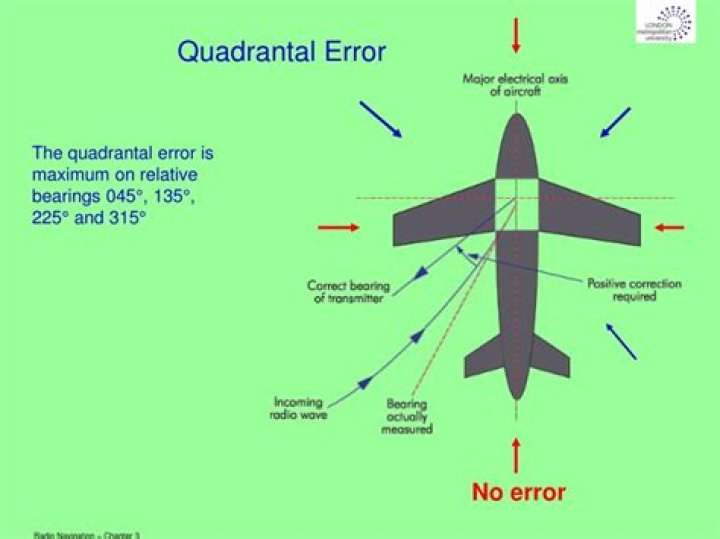

Quadrantal error is caused by an NDB signal bending towards the magnetic axis of the aircraft, causing the signal to appear to come from an incorrect direction.
What is quadrantal error in ADF?
Quadrantal Error (QE) Basically, Quadrantal Errors are the bending of signals caused by the aircrafts’ metal parts. Its effect is minimal at the cardinal points (nose, tail and wing tips), and greater in the intermediate bearings.
What is a Quadrantal deviation?
: the part of the compass deviation due to the transient magnetism induced in the horizontal soft iron of a ship by the horizontal component of the earth’s magnetism.
What can be a cause of error observed on a gyro compass reading?
The errors to which a gyrocompass is subject are speed error, latitude error, ballistic deflection error, ballistic damping error, quadrantal error, and gimballing error. Additional errors may be introduced by a malfunction or incorrect alignment with the centerline of the vessel.
What is speed error?
[′spēd ‚er·ər] (navigation) Acceleration error due to a change in the speed of a craft.
What is sense antenna?
The sense antenna allows the system to tell which side of the station the airplane is on. By combining the loop and sense signals, the system can compute where the station is relative to the aircraft.
What is radio magnetic indicator?
Radio Magnetic Indicator (RMI): An electronic navigation instrument that combines a magnetic compass card with two bearing pointers (typically). Generally, one pointer is for the ADF while the other is for an RNAV or VOR navigation system.
What are the Quadrantal spheres used for?
noun Nautical. either of two soft-iron spheres attached to each side of a binnacle, intended to correct the compass deviation (quadrantal deviation ) resulting from magnetism from ferrous metal in a ship.
What is the Quadrantal sphere?
[kwä′drant·əl ‚sfirz] (navigation) Two hollow spheres of soft iron placed near a magnetic compass to correct for quadrantal deviation.
What is gyro error definition?
[′jī·rō ‚er·ər] (navigation) The error in the reading of the gyro compass, expressed in degrees east or west to indicate the direction in which the axis of the compass is offset from the north.
Why gyro error is high or low?
To avoid confusion with magnetic errors, gyro error is named high (H) or low (L). Gyro error is named high when the gyro course or bearing is higher than the true course or bearing. Therefore high error must be subtracted from the gyro reading to obtain the true reading. The opposite applies to low error.
