What cables are used in a PLC?

The vast majority of PLC communications is done via RS232C and twisted pair cables. Most PLCs have an RS232 port and are capable of handling communications with host computers, printers, terminals, and other devices. Maximum transmission speed is 19.2 Kbps.

What is PLC connection?

PLC Connect supports OPC, serial and dialed communication. Collecting variables from a PLC and organizing them into object types enhances the overview and understanding of the system. PLC Connect gives operators the same user experience for devices controlled by a PLC as for embedded 800xA DCS controllers.

How many types of communication cables are there?

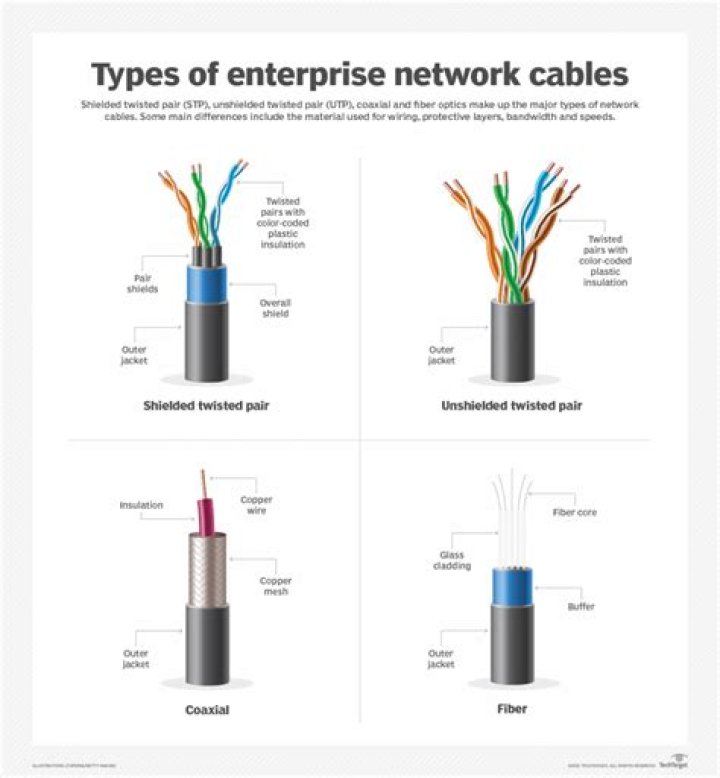

Fiber optic cable, twisted pair cable, and coaxial cable are the three main types of network cables used in communication systems. Each of them is different and suitable for various applications.

What are RJ45 cables?

Ethernet cables come with RJ45 connectors on both ends. Because of this, an Ethernet cable is sometimes designated as an RJ45 cable. These cables are often used to connect computers onto Ethernet networks. The RJ-45 connector resembles a six-pin RJ11 connector, though the 45 is slightly wider.

What is a HMI cable?

HDMI stands for High-Definition Multimedia Interface, a standard for simultaneously transmitting digital video and audio from a source, such as a computer or TV cable box, to a computer monitor, TV or projector.

What is PLC device?

A PROGRAMMABLE LOGIC CONTROLLER (PLC) is an industrial computer control system that continuously monitors the state of input devices and makes decisions based upon a custom program to control the state of output devices. Another advantage of a PLC system is that it is modular.

What is STP cable?

Shielded Twisted Pair (STP) STP cables are similar to UTP cables, where the wires are twisted together and then wrapped with a shielding or screening material which consits of foil wrapping or a copper braid jacket.

How do you plug in a PLC?

  1. Directly connect your PC to the controller using a mini B USB cable.
  2. Click the PLC tab on the program ribbon, and then click Communication.
  3. Select USB; the network Discovery utility will begin to search for UniStream devices.
  4. Click the desired device to establish communications. Related Topics. Communications.
