What are the various parts of an Orsat apparatus?
Common Spare parts for Orsat Gas Analysis Apparatus:
- Gas Burette 100ml (with jacket and without)
- Absorption Pipette (simple and bubbling type)
- Leveling Bottle 250ml.
- Asbestos Tube made of Platinum.
- Burette 100ml (with jacket and without)
- Combustion Pipette.
Which solution is mainly used in Orsat apparatus?
KOH solution used in orsat apparatus absorbs CO2 and SO2.
What is Orsat analysis?
A measurement of the oxygen, carbon dioxide, and carbon monoxide in a mixture of gases, usually from the exhaust of combustion processes such as boilers, furnaces, fired heaters, and combustion engines. Orsat in 1873, it involves absorption of the gases onto materials contained in pipette tubes.
What is the purpose of fused calcium chloride in Orsat apparatus?
Flue gas is passed through fused Calcium Chloride which absorbs the water vapor present due to its hygroscopic properties. Three way stopcock is opened and the flue gas is filled in the graduated burette. The whole set up is water jacketed to maintain a constant temperature.
What is flue gas analysis?
Flue Gas Analysis is performed by inserting a probe into the flue of the furnace, boiler, etc., between the last heat exchanger and draft diverter or any source of make-up air that could enter the flue that did not pass through the combustion process. This is known as ‘in-situ’ testing.
How will you analyse the flue gas by Orsat method?
An Orsat gas analyser is a piece of laboratory equipment used to analyse a gas sample (typically fossil fuel flue gas) for its oxygen, carbon monoxide and carbon dioxide content. Although largely replaced by instrumental techniques, the Orsat remains a reliable method of measurement and is relatively simple to use.
What is the function of Orsat apparatus?
What is the full form of CO2?
Carbon dioxide (chemical formula CO2) is an acidic colorless gas with a density about 53% higher than that of dry air. Carbon dioxide molecules consist of a carbon atom covalently double bonded to two oxygen atoms. It occurs naturally in Earth’s atmosphere as a trace gas.
What is the purpose of Orsat?
How does an Orsat apparatus work?
The apparatus consists of an intake valve which feeds into a calibrated water or glycerin jacketed gas burette, this burette is then connected by tubing to two or more absorption pipettes containing chemical solutions that absorb the gases it is being used to measure.
Why this flue gas analysis is done?
Plant operators have used combustion flue gas analysis for decades as a method of optimizing boiler combustion fuel/air ratios. By measuring the amount of excess oxygen and/or carbon monoxide (CO) in the flue gases, the plant can be tuned to operate at the best heat rate and lowest nitrogen oxide (NOx) levels.
How do you calculate flue gas?
Total amount of dry flue gas per 1 kg wood = 4.872 m3. Therefore % CO2 = 0.97/4.872 = 19.91 assuming stoichiometric combustion (0 % O2). For 20 % excess air = 16.6 % CO2 For 40 % excess air = 14.2 % CO2 For 50 % excess air = 13.27.
What kind of apparatus is the Orsat appparatus?
The apparatus normally used for the routine analysis of flue gas is the Orsat appparatus. The gases usually estimated are carbon dioxide, oxygen and carbon monoxide. The apparatus is illustrated in Fig. 122.1.
How does the Orsat gas analysis apparatus work?
Orsat gas analysis apparatus. A levelling bottle is connected to the base of the gas burette to enable readings to be taken at constant pressure and for use in transferring gas to and from the absorption pipettes.
What is the construction of An Orsat SlideShare?

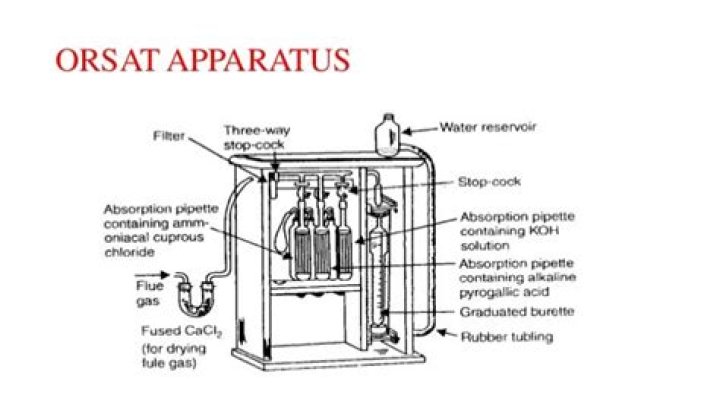

CONSTRUCTION • Consists of a water-jacketed measuring burette, connected in series to a set of three absorption bulbs, each through a stop-cock. • The other end is provided with a three-way stop-cock, the free end of which is further connected to a U-tube packed with glass wool (for avoiding the incoming of any smoke particles, etc.)
How does the Orsat absorb CO2 and O2?
• Second bulb has a solution of ‘alkaline pyrogallic acid’ (25g pyrogallic acid+200g KOH in 500 mL of distilled water) and it can absorb CO2 and O2. • Third bulb contains ‘ammonical cuprous chloride’ (100g cuprous chloride + 125 mL liquor ammonia+375 mL of water) and it can absorb CO2, O2 and CO.
What is the purpose of the Orsat apparatus?
The Orsat Apparatus is used to Analysis the products combustion, this is done by the process explained below. It consists of burette to measure and there are three flasks. There is a chemical in the flasks to absorb different types of gasses, like CO2, O2 , CO.
How is flue gas analysis done by Orsat apparatus?
This is because the absorbent used for O2 i. For safety and portability, the apparatus is usually encased in a wooden box. The three way cock is open and the sample of flue gas is drawn in the measuring bottle. The Orsat analysis of the flue gas shows The process is repeated to ensure full absorption.
How is chemical absorption reaction in Orsat apparatus?
Chemical Absorption Reaction in orsat apparatus. FLUE GAS ANALYSIS ORSAT APPARATUS. Since one mole of any gas occupies the same volume under the same conditions of temperature and pressure. The eudiometer reading is taken and the difference of two readings gives the percentage of CO 2 by volume in the gas sample.
What do you need to know about the Orsat analyzer?
Jump to navigation Jump to search. ORSAT analyzer. An Orsat gas analyser is a piece of laboratory equipment used to analyse a gas sample (typically fossil fuel flue gas) for its oxygen, carbon monoxide and carbon dioxide content.
