What are the rules of GD?

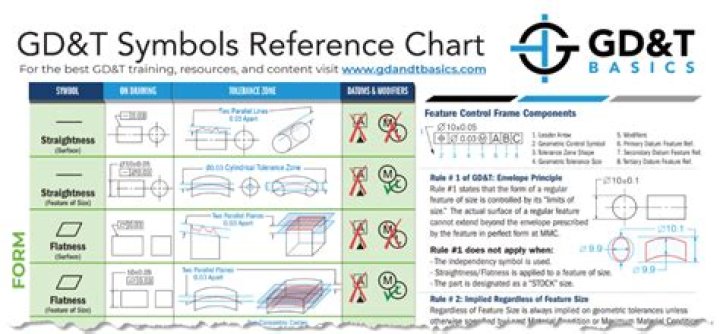

GD Rules
- All dimensions must have a tolerance.
- Dimensions and tolerances shall completely define the nominal (ideal) geometry and allowable variation.
- Dimensions and tolerances are valid at 20 deg C unless stated otherwise.
- Dimensions and tolerances are valid when the item is in a free state unless stated otherwise.
What is Rule No 2 in GD?
Definition: Regardless of Feature Size (RFS) is the default condition of all geometric tolerances by rule #2 of GD and requires no callout. Regardless of feature size simply means that whatever GD callout you make, is controlled independently of the size dimension of the part.
What is Rule No 1 in GD?
, Rule 1 states: “Where only a tolerance of size is specified, the limits of size of an individual feature prescribe the extent to which variations in its form – as well as in its size- are allowed.”
Under what conditions is Rule #1 not applicable?
In simple terms, Rule #1 does not apply to flexible parts that are not restrained. Rule #1 does not apply to stock sizes, such as bar stock, tubing, sheet metal, or structural shapes. Paragraph 2.7. 1.3 in ASME Y14.
What is envelope principle?
The envelope principle is the concept that the indicated toleranced size also controls the geometrical characteristics if the target is a feature of size. The indicated toleranced size also controls the geometrical characteristics for a feature of size. ASME also adopted the independence symbol in 2009.
What is feature of size?
“Feature of size” is the geometric shape defined by size dimensions such as length and angle. Examples of feature of size include cylindrical and spherical forms as well as two opposing planes. Since the feature is defined by size dimensions, the overall size changes along with the dimensions.
What is RFS in tolerance?
RFS – Regardless of Feature of Size (default) RFS Regardless of Feature Size is the default condition of all geometric tolerances by rule #2 of GD and requires no callout. Regardless of feature size simply means that whatever GD callout you make, is controlled independently of the size dimension of the part.
What is Max material condition?
Maximum Material Condition (MMC) and Least Material Condition (LMC): Simple Definitions. MMC is the condition of a feature which contains the maximum amount of material, that is, the smallest hole or largest pin, within the stated limits of size.
What is a bonus tolerance?
In GD, bonus tolerance is a modification of a GD tolerance that under certain conditions increases the tolerance, hence the term “bonus”. More specifically, when the maximum material condition (MMC) symbol is used to modify a GD tolerance, bonus tolerance becomes available.
What is feature in GD and T?
GD is a feature-based system, and parts are composed of features. Geometric tolerances are applied to features by feature control frames. The most frequently used tolerance categories are form, orientation, and location; therefore, the ten associated symbols are the most utilized of the fourteen total GD symbols.
What is MMC modifier?
Maximum Material Condition Modifier (MMC): The circled M. This provides a feature with additional geometric tolerances as the feature’s size departs from its maximum material conition. This provides a feature with additional geometric tolerances as the feature’s size departs from its least material conition.
