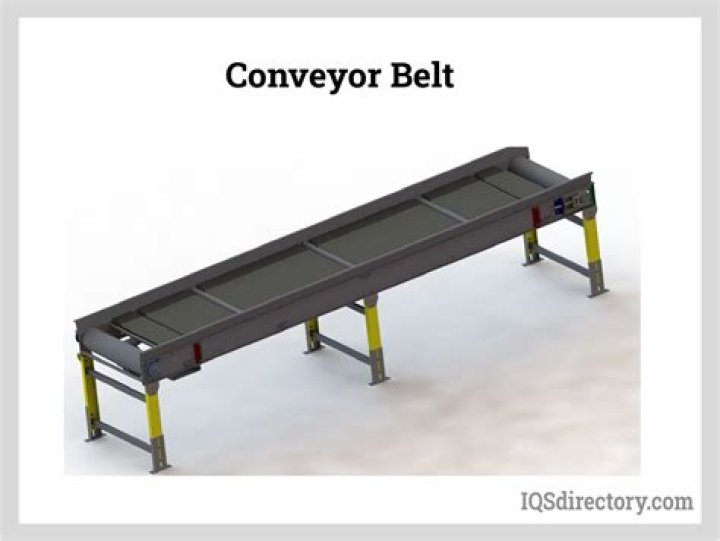

What are the parts of conveyor belt?
There are three main parts of a conveyor system: the belt support, the pulley and the drive unit.
What are idlers in conveyors?
Idlers are vital to the conveying process. They support the belt and conveyed material along its full length preventing it from stretching, sagging and eventually failing. Troughers are the most common idlers used on the carry side of the conveyor. Extending their life expectancy can be a challenge.
What is a conveyor stringer?
Stringer-The longitudinal supporting members of a conveyor structure, between the terminal pulleys. Surcharge angle-The angle to the horizontal which the surface of a body of material assumes while the material is at rest on a moving conveyor belt.
What is the tail pulley?
The tail pulley is located at the loading end of the belt. It comes with either a flat face or a slatted profile (wing pulley), which cleans the belt by allowing material to fall between the support members. Snub pulleys. A snub pulley improves the traction of the drive pulley, by increasing its belt wrap angle.
What is bend pulley?
A bend pulley is an optional component to belt scale weighing systems. The bend pulley provides a convenient interface to the conveyor belt to provide rotary motion for the speed sensor. A speed sensor installed using a bend pulley is subject to less slippage than if the speed sensor was installed at the head pulley.
What is sacrificial belt conveyor?
Sacrificial surface-A wear surface that is installed to protect a more valuable structure by absorbing, cushioning, or isolating the abrasion, impact, or other forces. Saddle-An additional short length of belting added to an existing conveyor belt.
What is a troughed conveyor belt?
Trough Conveyors are designed to help keep loose or bulk materials in the center of the conveyor. The belt is troughed with rollers, rails, or with a slider bed that the belt conforms to. Trough belts are great for conveying loose or bulk materials, especially if the material is abrasive.
What are 3 types of pulleys?
These are different types of pulley systems:
- Fixed: A fixed pulley has an axle mounted in bearings attached to a supporting structure.
- Movable: A movable pulley has an axle in a movable block.
- Compound: A combination of fixed and movable pulleys forms a block and tackle.
What mean snub pulley?
Definition of snub pulley : a pulley placed to support an empty conveyor belt in its return.
What is a snub pulley used for?
Snub pulleys are used to increase the wrap angle of the conveyor belt to reduce the pulling force of the belt.
