What are the 4 types of tessellations?
Types of Tessellations. There are four types of tessellations: regular, semi-regular, wallpaper, and aperiodic tilings. Both regular and semi-regular tessellations are made from polygon shapes, but they have some distinct differences in the included polygons.
What are the 3 rules for tessellations?
REGULAR TESSELLATIONS:
- RULE #1: The tessellation must tile a floor (that goes on forever) with no overlapping or gaps.
- RULE #2: The tiles must be regular polygons – and all the same.
- RULE #3: Each vertex must look the same.
What is the formula of an N-sided regular polygon?
Since the sum of all the interior angles of a triangle is 18 0 ∘ 180^\circ 180∘, the sum of all the interior angles of an n n n-sided polygon would be equal to the sum of all the interior angles of ( n − 2 ) (n -2) (n−2) triangles, which is ( n − 2 ) 18 0 ∘ . (n-2)180^\circ. (n−2)180∘.
Can you create a regular tessellation with a regular pentagon?
We have already seen that the regular pentagon does not tessellate. A regular polygon with more than six sides has a corner angle larger than 120° (which is 360°/3) and smaller than 180° (which is 360°/2) so it cannot evenly divide 360°.
How do you know if a regular polygon will tessellate?
A figure will tessellate if it is a regular geometric figure and if the sides all fit together perfectly with no gaps.
What are regular tessellations?
A regular tessellation is one made using only one regular polygon. A semi-regular tessellation uses two or more regular polygons. A tessellation can be described by the shapes that meet at each vertex, or a corner point. In a tessellation, the shapes that appear at every vertex follow the same pattern of shapes.
How many types of regular tessellations are there?
three regular tessellations

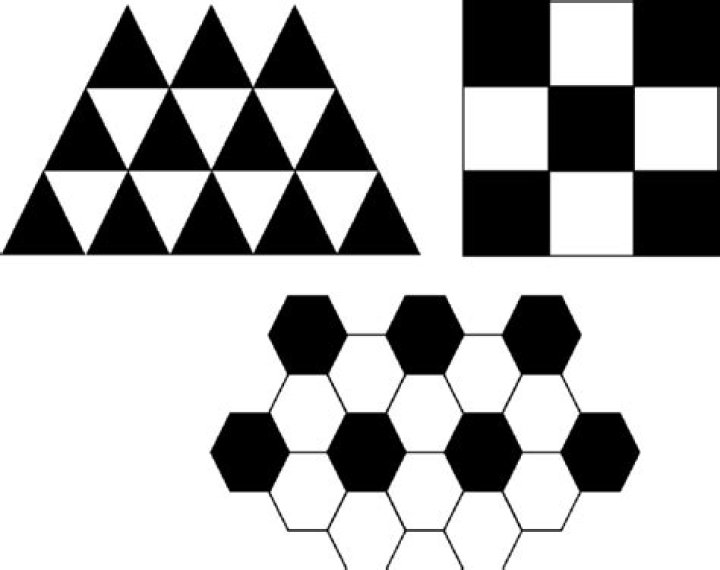

A regular tessellation is a highly symmetric, edge-to-edge tiling made up of regular polygons, all of the same shape. There are only three regular tessellations: those made up of equilateral triangles, squares, or regular hexagons. All three of these tilings are isogonal and monohedral.
How many diagonals does a polygon with N sides have?
Number of Diagonals = n(n-3)/2 In other words, an n-sided polygon has n-vertices which can be joined with each other in nC2 ways. Now by subtracting n with nC2 ways, the formula obtained is n(n-3)/2. For example, in a hexagon, the total sides are 6. So, the total diagonals will be 6(6-3)/2 = 9.
Can a hexagon and pentagon tessellate together?
Three regular pentagons is too small, four regular pentagons too large. There is no Goldilocks (integer) number of regular pentagons to make a perfect tessellation. For hexagons, these tesselate. The internal angle for a hexagon is 120°, and it’s easy to compute that three of these fit together in a circle.
