What are grating clips used for?

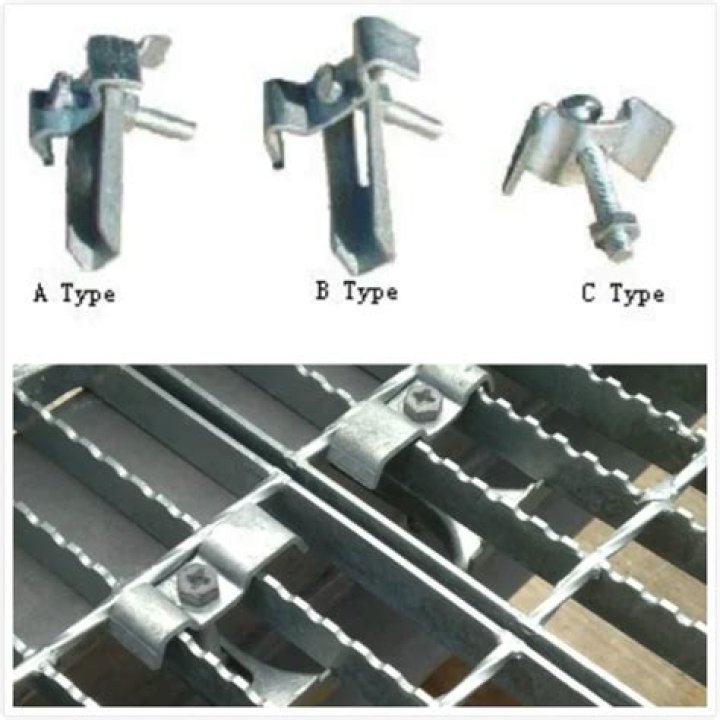

Grating Fasteners (also known as Grating Clips and G-Clips) are simple fasteners that allow bar grating to be attached to steel structures without the need for drilling or welding.
How are grating clips measured?
How To Measure Bar Grating Dimensions
- Start with measuring the length (Bearing Bar) Also referred to as “span”
- Then measure size of bearing bar. Expressed in inches of thickness and depth of bar.
- Measure the width (Cross Bar) Also referred to as “connecting bars”
How do you attach a grating?
Fastener Fixing
- Install the upper clip. Put the upper clip on the upper surface of the steel grating.
- Install the lower clip. Put the lower clip on the lower surface of the steel grating and against the steel beam of the steel grating.
- Install bolts and nuts.
What is g clip?
Why use the G-Clip? The G-Clip eliminates the need to replace a damaged, broken, or stripped plastic electrical box. After turning off the power, simply pull the outlet or switch away from the electrical box. Install the G-Clip over the damaged hole. Then re-attach the outlet or switch to the box.
What is saddle clip?
Saddle clips are used to attach grating to structural members. A popular method of attaching grating to structures involves formed metal pieces, variously called saddle clips, butterfly clips, and M-Clips, placed onto the grating top surface and attached with a suitable screw, bolt, or pin to the structure.
Which way does grating span?
Grating Terms
| Term | Definition |
|---|---|
| Span of Grating | The distance between points of grating support, or the direction of this dimension. |
| Straight Cut | That portion of the cut edge or cutout of a grating which follows a straight line. |
How do you specify a grating bar?
How to specify steel grating
- Select type of grating. W for welded steel grating.
- Select material of grating. Stainless steel.
- Select bar spacing from above table.
- Select bearing bar size.
- Select plain or serrated surface.
- Specify banding or additional trim required.
- Specify finish.
- Specify fasteners (if required)
What is AG clef?
[English] A symbol located at the beginning of a staff to indicate the pitches of the notes placed on the lines and spaces of the staff. The G clef is so named because the symbol is a stylized letter “G” that encircles the line of the staff, indicating where the “G” above middle C (G4 or g1) is located.
What is PVC saddle?
A PVC saddle tee can be used to quickly add a tee in an existing PVC pipe such as those used in irrigation systems. These PVC fittings are available in many sizes and can be found at most home improvement stores and irrigation supply stores.
What is banded grating?
Banding is an option to protect the open ends of the grating panel. Banding may be specified on any grating product. During the banding process, a metal flat bar is welded to the open ends of the grating panel. Removable grating panels – Closed ends provide additional worker safety during handling.
