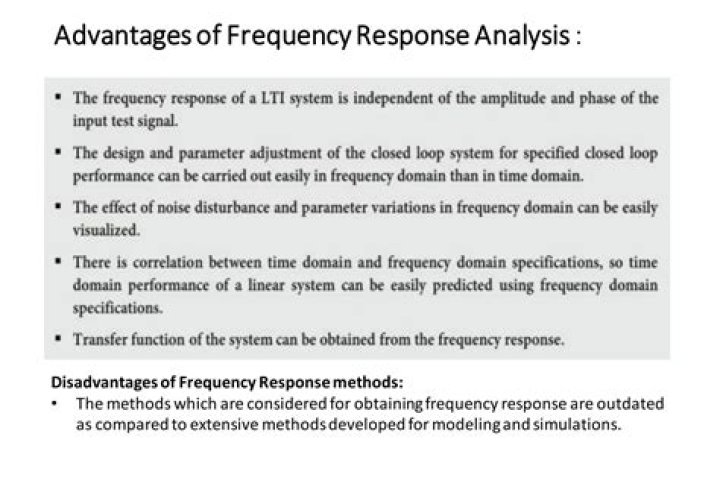

What are advantages of frequency response analysis?
Advantages of Frequency Domain Analysis Transfer functions which are complicated to determine the behavior of the experimentally can be determined using the frequency response analysis. Design of the system and adjusting the parameters of the system can be easily carried out.
What do you mean by frequency response curve?
frequency response curve: A plot of the gain or attenuation of a device, such as an amplifier or a filter, as a function of frequency. Note: A flat curve indicates a uniform gain or attenuation over the range of frequencies for which the curve is flat.
What is the importance of frequency domain?
The frequency domain representation of a signal allows you to observe several characteristics of the signal that are either not easy to see, or not visible at all when you look at the signal in the time domain. For instance, frequency-domain analysis becomes useful when you are looking for cyclic behavior of a signal.
What are the limitations of frequency response methods?
DISADVANTAGES: Requires transfer function of plant be known. Difficult to infer all performance values. Hard to extract steady-state response (sinusoidal inputs).
Why frequency domain analysis is important in control system?
Frequency domain analysis is widely used in fields such as control systems engineering, electronics and statistics. Frequency domain analysis is mostly used to signals or functions that are periodic over time. This does not mean that frequency domain analysis cannot be used in signals that are not periodic.
Why should we go for frequency analysis instead of time analysis?
In this case, the frequency-domain analysis gives a better understanding than time domain analysis because music is tacitly based on the breaking down of intricate sounds into their separate component frequencies. An oscilloscope is an invaluable tool for detecting signals.
What are the advantages of frequency domain analysis over time domain analysis?
In designing and optimizing motion control systems, frequency domain translation of time domain data can therefore allow much greater clarity and simplicity in the analysis of system outputs.
Why do we need frequency analysis?
Why frequency analysis is needed?
Frequency-domain analysis is a tool of utmost importance in signal processing applications. While time-domain analysis shows how a signal changes over time, frequency-domain analysis shows how the signal’s energy is distributed over a range of frequencies.
What is the difference between time response and frequency response?
Time response means how the output waveform of the circuit varies with time. Frequency response: We apply a variable frequency sinusoid Wave (generally) as an input waveform and observe the output waveform for apmlitude gain and phase shift from the input waveform.
Why is the Bode plot needed to plot the frequency response curve?
A Bode plot is a graph of the magnitude (in dB) or phase of the transfer function versus frequency. The advantage of this approach is the insight it provides on how the circuit elements influence the frequency response. This is especially important in the design of frequency-selective circuits.
Why is frequency domain representation useful and needed?
Frequency domain representations are particularly useful when analyzing linear systems. EMC and signal integrity engineers must be able to work with signals represented in both the time and frequency domains. Signal sources and interference are often defined in the time domain.
