Is NPT and R thread same?
NPT threads are common in the United States and a few other countries, BSP threads (also know as the R subset according to ISO 7) are widely used in many other countries.
Is R thread compatible with NPT?
SMC Unifit one-touch fittings have been designed to thread and seal properly into NPT, NPTF, Rc, R(PT), BSPT, G, or BSPP female threads.
What is an R thread?
These are parallel threads (BSPP), which have a constant diameter, which are known a G threads, and taper threads (BSPT), whose diameter increases or decreases along the length of the thread, known as R threads. …
What size is a 1/4 NPT fitting?

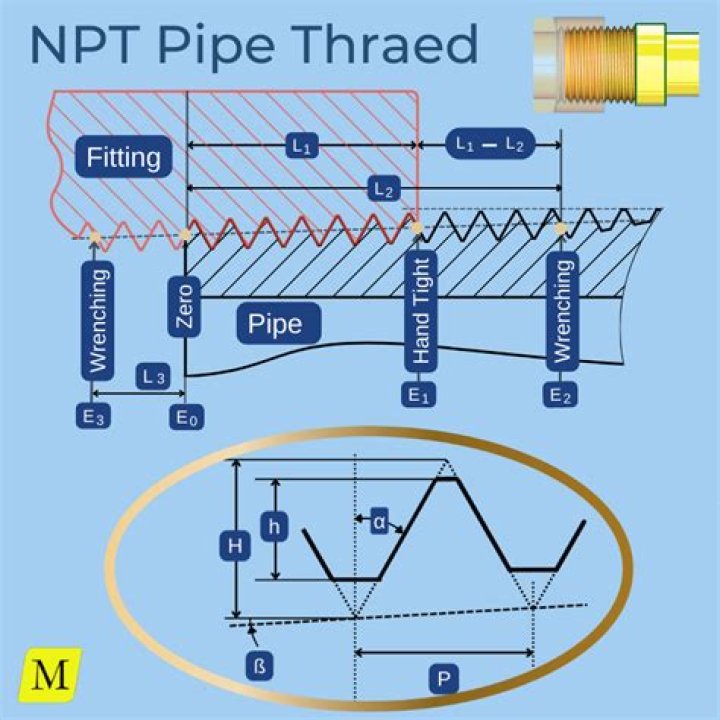

NPT and NPTF pipe threads – dimensions according ANSI/ASME B1. 20.1/3
| NPT – American Standard Pipe Thread Taper 1) | ||
|---|---|---|
| Pipe Size (inches) | TPI | Nominal Outside Diameter Pipe OD (inches) |
| 1/4″ | 18 | 0.540 |
| 3/8″ | 18 | 0.675 |
| 1/2″ | 14 | 0.840 |
What is r1 4 thread?
| British Pipe Thread ( Whitworth Form) — Taper (BSPT) | ||
|---|---|---|
| Thread Designation BSPT | Nominal Size BSPT | Minor Diameter Male Thd. d3 |
| R 1/4 | 1/4″ | 11.445 |
| R 3/8 | 3/8″ | 14.950 |
| R 1/2 | 1/2″ | 18.631 |
What does 1/4 NPT stand for?
NPT stands for National Pipe Tapered threads, also known as ANSI/ASME B1. 20.1 pipe threads. It is a U.S. standard for measuring tapered threads on threaded pipes and fittings.
How do I know what size NPT I need?
To determine the NPT size, with a caliper, measure the diameter of the 2nd or 3rd thread on your pipe, fitting or valve as shown below. Find the caliper measurement in the chart and cross reference the nominal NPT pipe size. Don’t get confused, the actual measurement is not the same as the NPT pipe size.
What is a female NPT?
Sanitary Stainless Steel Fittings National Pipe Taper (NPT) are a standardized fitting that is commonly used for joining pipe. Due to the tapered threads (wider diameter at the base of the threads, similar to a trapezoid) the male fitting will tighten the further it is threaded into the female.
Are female NPT threads tapered?
The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT. NPT has a tapered male and female thread which seals with Teflon tape or jointing compound.
