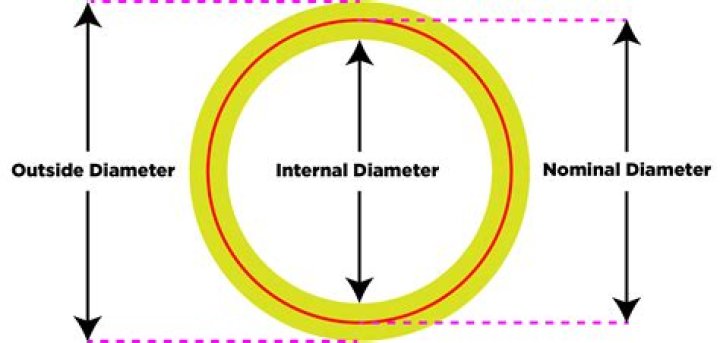

Is nominal diameter The outside diameter?
The nominal diameter (diameter) is also called the average outer diameter. This is because the tube from the metal tube is very thin, and the outer diameter of the tube is almost the same as the inner diameter of the tube.
How do you calculate NB OD?
NB (nominal bore) is also frequently used interchangeably with NPS. OD is the outside diameter of the pipe and is fixed for a given size….What is a relation between NPS, NB & OD of a pipe?
| Nominal Pipe size NPS [inches] | Nominal Diameter DN [mm] | Outside Diameter OD [mm] |
|---|---|---|
| 1 1/2 | 40 | 48.26 |
| 2 | 50 | 60.3 |
| 2 1/2 | 65 | 73.03 |
| 3 | 80 | 88.9 |
What is the difference between nominal diameter and outside diameter?
When it comes to measurement of pipe, it is measure by the inside diameter, often called the nominal diameter. The outside of the pipe is always larger than the inside. The difference between the inside diameter (ID) and the outside diameter (OD) is due to the thickness of the wall.
What is nominal outside diameter?
Nominal pipe size refers to only the outside diameter (OD) of a pipe making it somewhat vague. For example, when we say pipe size is 2 NPS, it refers to all the pipes having 2.375-inch (or 60.3 mm) as outside diameter irrespective of wall thickness and thus the inside diameter.
What is nominal and gross diameter?
Gross diameter is the diameter of rivet shank after fixing it to the body(which is more than the diameter of shank before fixing it,which is known as Nominal Diameter of Rivet),obviously it is important because it holds the body.
How is nominal diameter defined?
The term “Nominal Diameter” when used to describe the size (diameter) of pipe used in construction of standard railings and posts means the outside diameter.
What is NB size?
because of how pipes have traditionally been made, the fact that the Nominal Bore size is less than the pipe outside diameter only holds up to a 12″ pipe (300 NB)….Pipe Sizes, NB, DN and NPS – Are they all the same?
| Nominal Bore (metric / NB / DN) | Nominal Bore (Imperial) | Pipe Outside Diameter (metric) |
|---|---|---|
| 300 | 12″ | 323.9 mm |
| 350 | 14″ | 355.6 mm |
| 400 | 16″ | 406.4 mm |
| 450 | 18″ | 457.0 mm |
What is NB unit?
Nominal bore or nominal pipe size, a set of standard sizes for pipes. Nanobarn (nb), a unit of cross-sectional area.
What is meant by nominal diameter?
Is pipe size inside or outside diameter?
OD and Nominal Pipe Size Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS). Although it is related to the outside diameter, it is significantly different.
What is nominal diameter in rivet?
The nominal diameter of a rivet means the diameter of the cold shank before driving. 2 Gross diameter of rivet (D): The diameter of the hole is slightly greater than the diameter of the rivet shank. As the rivet is heated and driven, the rivet fills the hole fully.
Why nominal diameter is used?
The value of the nominal diameter is close to the inner diameter of the pipe but not equal to it, and is adopted in order to unify the connecting dimensions of the pipe and pipe fittings.
What is the nominal bore of a pipe?
Pipe bore is the actual minimum inside diameter of a pipe, which is not necessarily the nominal pipe size. What is the conventional definition of NB of a pipe? Nominal Bore.. What is mean NB which is related to GI pipe? Nominal bore which is designation for pipe size. What is nominal diameter of a pipe?
What’s the difference between nominal and outside diameter?
The first is the diameter of the rubber from which the ring is made, the second is the diameter that the ring forms. “Nominal” in the case of the former reflects the fact that the ring may not have the exact same diameter all the way around. This is due to the imperfect nature of its manufacture.
How to calculate the inside diameter of a pipe?
You can calculate Pipe Inside Diameter (ID) with the help of Outside Diameter (OD) and Thickness of the pipe by using formula given below. Pipe ID =
What is the nominal diameter of a number 8 rebar?
The inside diameter (ID) is 8 inches. The nominal pipe size (NPS) and outside diameter (OD) depend on the thickness of the walls of the pipe. What is the nominal diameter of a number 8 rebar?
Which is larger an OD or a nominal bore?
NB ( nominal bore) is also frequently used interchangeably with NPS. OD is the outside diameter of the pipe and is fixed for a given size. The NPS is very loosely related to the inside diameter in inches, but only for NPS 1/8 to NPS 12.
What’s the difference between the bore and the diameter of a pipe?
For pipe sizes with a NB of 14 inch (DN 350 mm) and above, the nominal bore is the same as the pipe Outside Diameter (OD). Confusingly, for pipe sizes with a NB of 12 inch (DN 300 mm) and below, the nominal bore and outside diameter are different. For example, a pipe with a 12 inch NB (DN 300 mm) has an OD of 12.75 inches, or 324 mm.
Is there a relationship between NB and outside diameter?
There is no relationship between the NB and outside diameter of the pipe. The pipe size is specified with two numbers: the nominal pipe diameter (or nominal bore) and the pipe schedule.This then sets the outside pipe diameter, the wall thickness (and hence the internal diameter). For example, 3″ NB Sch 10.
What is the difference between nominal bore diameter and wall thickness?
Answer Wiki. Nominal Pipe Size and Schedule collectively sets the pipe outside diameter (OD) and the wall thickness (and hence the internal diameter (ID) is automatically fixed). For example, NPS 14 Sch 40 has an OD of 14 inches (360 mm) and a wall thickness of 0.437 inches (11.1 mm).
