Is my FTP server active or passive?

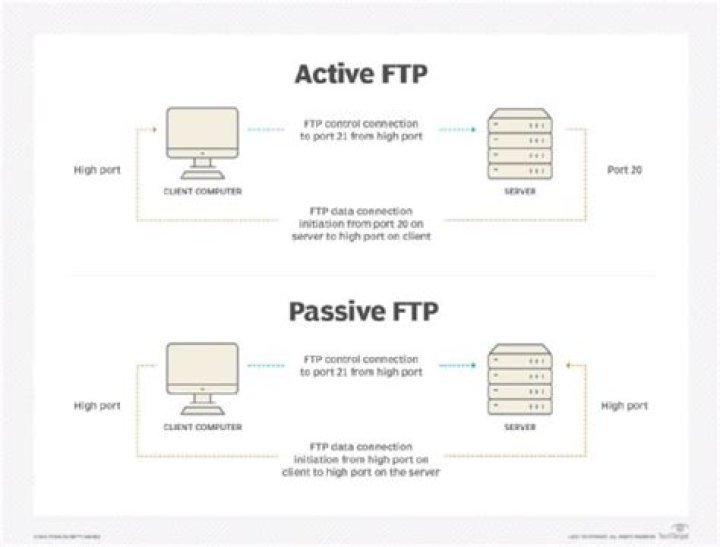

In an active mode connection, when the client makes the initial connection and sends PORT, the server initiates the second connection back. In a passive connection, the client connects and sends the PASV command, which functions as a request for a port number to connect to.
Is client active or passive?
2. Passive FTP :
| Active FTP | Passive FTP |
|---|---|
| Active mode is not used as a default mode of a browser. | Passive mode is used as a default mode of a browser. |
| FTP client acknowledges on data channel. | FTP server acknowledges on data channel. |
| Client sends random port number to the server. | Client sends PASV command to the server. |
What is passive FTP and Active FTP?
Active vs Passive FTP When an FTP connection is initiated, it begins with a control connection. In Passive Mode, the FTP server waits for the FTP client to send it a port and IP address to connect to. In Active mode, the server assigns a port and the IP address will be the same as the FTP client making the request.
Why is FTP in passive mode?
Passive FTP is an FTP mode that can be requested by a client to alleviate the issues caused by client-side firewalls. Both the server and the client must support passive FTP for this process to work. When passive FTP is used, the client will initiate the connection to the server.
How do you put FTP into passive mode?
Set up FTP passive mode
- Select Setup > FTP Settings to open the FTP Settings page.
- Under FTP Passive Mode:
- Type the appropriate port number for the Base Port. This is the first port used. Type the Number Of Ports.
- The Port End field displays the number for the last port to use.
- Click Save to apply the changes.
What are the FTP passive ports?
Passive FTP
- FTP server’s port 21 from anywhere (Client initiates connection)
- FTP server’s port 21 to ports > 1023 (Server responds to client’s control port)
- FTP server’s ports > 1023 from anywhere (Client initiates data connection to random port specified by server)
How do I connect to FTP in active mode?
You must select Enable Active Connection Mode to use Active FTP in an FTP transfer site.
- Select Setup > FTP Settings to open the FTP Settings page.
- Under FTP Active Mode:
- Type the appropriate port number for the Base Port. This is the first port used. Type the Number Of Ports.
- Click Save to apply the changes.
How do I use FTP active?
Active Mode FTP
- A user connects from a random port on a file transfer client to FTP port 21 on the server. It sends the PORT command, specifying what client-side port the server should connect to.
- The server connects from port 20 to the client port designated for the data channel.
What is active mode FTP?
FTP may operate in an active or a passive mode, which determines how a data connection is established. In the active mode, the client starts listening on a random port for incoming data connections from the server (the client sends the FTP command PORT to inform the server on which port it is listening).
How do I enable FTP passive mode?
Configure FTP servers
- Log in to the server as the root user via SSH.
- Open the /var/cpanel/conf/pureftpd/local file, if it already exists, with a text editor.
- Add the desired changes to the file.
- If you want to change your server’s default passive port range, run the following commands:
What ports does Active FTP use?
FTP is a TCP based service exclusively. There is no UDP component to FTP. FTP is an unusual service in that it utilizes two ports, a ‘data’ port and a ‘command’ port (also known as the control port). Traditionally these are port 21 for the command port and port 20 for the data port.
