Is DVI-d same as DVI?

Is DVI-d same as DVI?

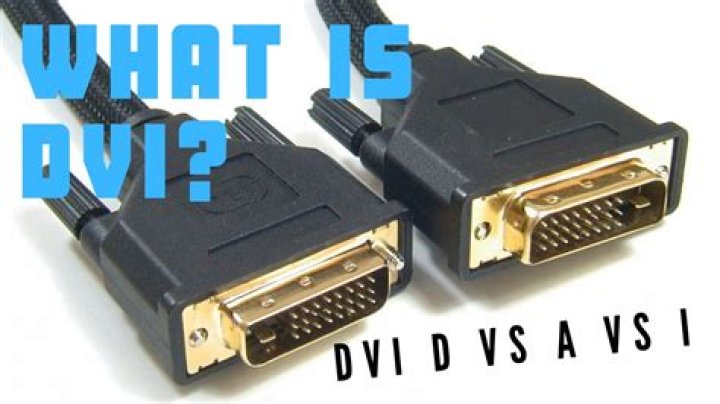

Essentially, DVI-D is the same as DVI-I with DVI-D missing the analog portion of the signals. A DVI-D connector and monitor can connect to a DVI-I output and function. A DVI-I monitor can connect to a DVI-D output with the caveat that no analog video will be available.

What is a DL DVI?

Dual link DVI adds six pins, at the center of the connector, for a second transmitter increasing the bandwidth and supporting resolutions up to 2560 × 1600 at 60 Hz. A connector with these additional pins is sometimes referred to as DVI-DL (dual link).

Is DVI a digital signal?

A DVI-D connector on a graphics card sends out a digital signal only, while a DVI-I connector can send out a digital signal (for digital displays such as flat panel LCD monitors) as well as analog signal (for older displays such as a CRT monitor) using a DVI to VGA adaptor shown below.

Are there 2 types of DVI?

There are currently two prominent types of DVI connectors, DVI-I (Figure 1) and DVI-D (Figure 2). DVI-D provides a digital only signal, while DVI-I can support digital and analog signals.

What is the highest resolution for DVI?

In addition, VGA provides a maximum resolution of 640 x 480 with a refresh rate of 60 Hz while a DVI connector can boast a resolution of up to 1920 x 1200 pixels for single-link format or 2560 x 1600 resolution for dual-link format [6].

What’s better for gaming HDMI or DVI?

HDMI is the best choice if you are just connecting a gaming console, blu-ray player or streaming device to your TV. DVI is a good choice if you’re looking to get the most out your high frame rate on a 1080p monitor. For now, we recommend gaming at 1440p or 1080p at high refresh rates like 120 or 144 Hz.

Is VGA old technology?

VGA, or Video Graphics Array, is considered an old-school technology. In fact, it’s one of the oldest connection standards found on the market today. It was first created by IBM and introduced to the world in 1987 [2]. It was commonly used for video cards, computer monitors, TV sets, and laptops.

Is DVI capable of 144Hz?

DVI is capable of 144hz refresh rates, so it’s a good choice if you have a 1080p 144hz monitor. This is especially true for gamers who have an FPS that is higher than 60.

Can DVI do high refresh rate?

DVI is capable of 144hz refresh rates, so it’s a good choice if you have a 1080p 144hz monitor. This is especially true for gamers who have an FPS that is higher than 60. If you want 4K, though, you’ll need to go with DisplayPort or HDMI.

Can DVI DisplayPort do 144Hz?

Answer: To output 1080p content at 144Hz, you will need either a Dual-Link DVI, DisplayPort, or HDMI 1.4 cable (or better). For 144Hz at 1440p, you will need at least HDMI 2.0 or DisplayPort 1.2 while for 4K 144Hz you are going to need HDMI 2.1 or alternatively, DisplayPort 1.4 with DSC 1.2.
