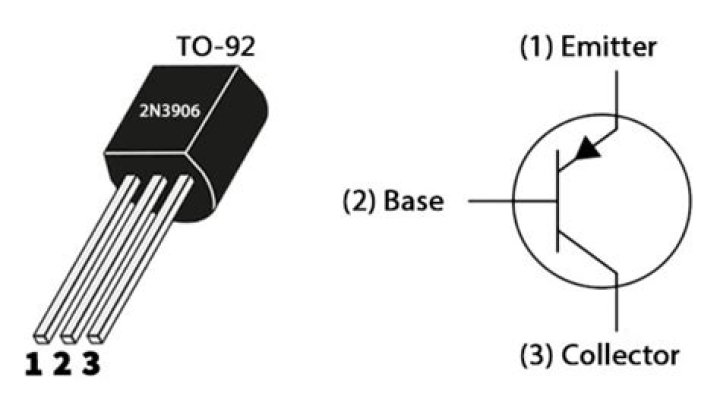

Is 2N3906 NPN or PNP?
The 2N3906 is a commonly used PNP bipolar junction transistor intended for general purpose low-power amplifying or switching applications.
What type of transistor 2N3905 is?
PNP silicon transistors
The CENTRAL SEMICONDUCTOR 2N3905 and 2N3906 types are PNP silicon transistors designed for general purpose amplifier and switching applications.
What number transistor is a PNP?
PNP Transistors
| Manufacturer Part Number | Description | Transistor Type |
|---|---|---|
| BD912 | TRANS PNP 100V 15A TO-220 | PNP |
| TIP36C | TRANS PNP 100V 25A TO-247 | PNP |
| 2STF2550 | TRANS PNP 50V 5A SOT 89 | PNP |
| 2STF2360 | TRANS PNP 60V 3A SOT-89 | PNP |
Is PMOS a PNP?
PMOS — The two terminals source and drain acts as a resistor controlled by vSG −|Vt|. NPN — The two terminals emitter and collector acts as a resistor controlled by IB. PNP — The two terminals emitter and collector acts as a current source controlled by IB (or vEB).
What is the difference between PNP and NPN transistors?
An NPN transistor has a piece of P-type silicon (the base) sandwiched between two pieces of N-type (the collector and emitter). In a PNP transistor, the type of the layers are reversed. NPN and PNP transistors have very similar schematic symbols. The only difference is the direction of the arrow on the emitter.
What is 2n4401?
2n4401 is an NPN bipolar junction transistor which is used for general purpose amplification and switching purpose. It is called bipolar junction transistor because conduction is carried out by both charge carriers i.e electrons and holes, but majority charge carriers will be electrons.
Can PNP be used as NPN?
Answer: NPN and PNP transistors are interchangeable if you remember one simple rule: A bipolar transistor is essentially two back-to-back diodes with the base being the common connection.
What is PNP circuit?
The PNP transistor is a type of transistor in which one n-type material is doped with two p-type materials. It is a device that is controlled by the current. Both the emitter and collector currents were controlled by the small amount of base current. Two crystal diodes are connected back-to-back in the PNP transistor.
Is BJT and transistor same?
There are to types of transistors which are known as Field Effect Transistors (FET) and Bipolar Junction Transistors (BJT). Therefore, a transistor is a semiconducting device which amplifies and switches input signals, and BJT is a type of transistor.
Is PNP a sink?
PNP sensors are current-sourcing devices, and NPN sensors are current-sinking devices.
