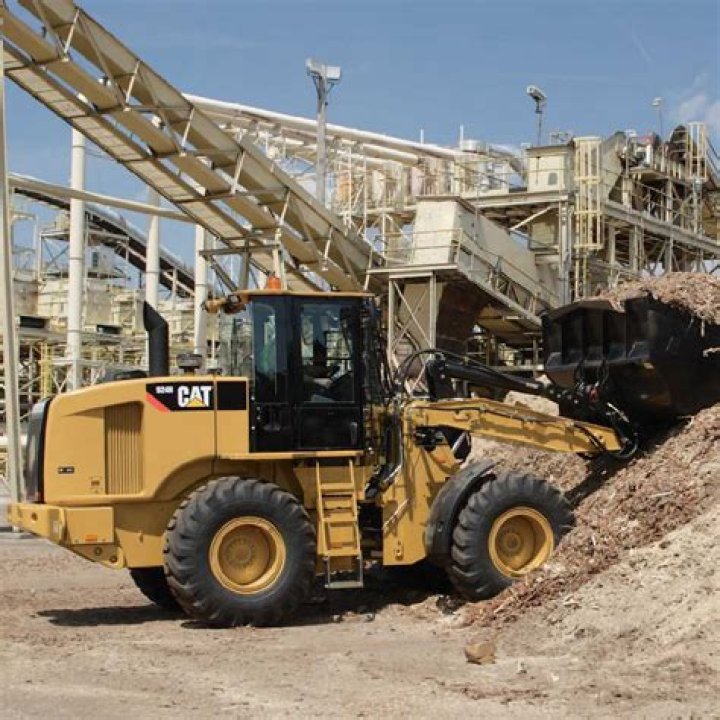

How much does a CAT 924h weigh?
25644 lbs
Operating Specifications
| Cooling System Fluid Capacity | 10.6 gal (40 l) |
|---|---|
| Fuel Capacity | 59.5 gal (225 l) |
| Hydraulic System Fluid Capacity | 39 gal (148 l) |
| Operating Weight | 25644 lbs (11,632 kg) |
| Rated Bucket Capacity | 2.7 cu yds (2 m) |
How much does a 994 CAT loader weight?
427,209 lbs
The Caterpillar 994 is the largest-ever wheel loader built by Caterpillar. At 427,209 lbs the giant Caterpillar 994 dwarfs the 992, nearly doubling the already massive wheel loader in terms of weight, power, and bucket capacity.
How much does a 910 CAT loader weigh?
14210 – 18,102 lbs
Operating Specifications
| Alternator Supplied Amperage | 40 A |
|---|---|
| Fuel Capacity | 29.9 gal (113 l) |
| Hydraulic System Fluid Capacity | 15.1 gal (57 l) |
| Operating Voltage | 12 V V |
| Operating Weight | 14210 – 18,102 lbs (6,446 – 8,211 kg) |
How much does a 926 CAT loader weight?
20498.6 lbs
Operating Specifications
| Alternator Supplied Amperage | 50 A |
|---|---|
| Hydraulic System Fluid Capacity | 24.4 gal (92 l) |
| Operating Voltage | 24 V V |
| Operating Weight | 20498.6 lbs (9,298 kg) |
| Rear Axle Oscillation | 30 ° |
How big is a Cat 994?
The 994K’s size is 6.24m x 18.86m x 7.118m. The Size of standard tyres for this Caterpillar 994K is 45/65-45. 27km/h is a maximum speed of which this Caterpillar Wheel Loader can travel. The bucket capacity of 12.2m³ and the maximal discharge height of 6.167m are about average for this type of machine.
What is the biggest loader?
Komatsu P&H L-2350
1: Komatsu P&H L-2350 Originally part of the portfolio of Texas-based manufacturer LeTourneau prior to the 2011 acquisition, the L-2350 is the world’s largest wheel loader. It has a massive 72.5 tonne payload capacity and stands at an imposing 6.7 metres tall.
How much does a CAT 908 weigh?
14323 lb 6499 kg
Dimensions with Bucket (Approximate) – Standard Lift – With ISO Coupler
| Length – Wheel Base | 7.08 ft 2170 mm |
|---|---|
| Width – Tread Center | 5.08 ft 1570 mm |
| Departure Angle | 33° 33° |
| Operating Weight | 14323 lb 6499 kg |
| Height – Ground to Cab** | 8.67 ft 2650 mm |
How much can a cat 926m lift?
Loader Hydraulic System
| Hydraulic Cycle Time – Standard Mode at 1,600 rpm – Total Cycle Time | 10.5 s 10.5 s |
|---|---|
| Maximum Flow – Implement Pump | 40 gal/min 150 l/min |
| Hydraulic Cycle Time – Standard Mode at 1,600 rpm – Raise, Ground Level to Maximum Lift | 6.2 s 6.2 s |
| Maximum Working Pressure – Implement Pump | 3771 psi 26000 kPa |
Who makes the biggest payloader?
What is the biggest loader in the world? The world’s largest front end wheel loader is the Komatsu P&H L-2350, with a phenomenal 72.5 tonne payload capacity and 272 tonne operating weight.
