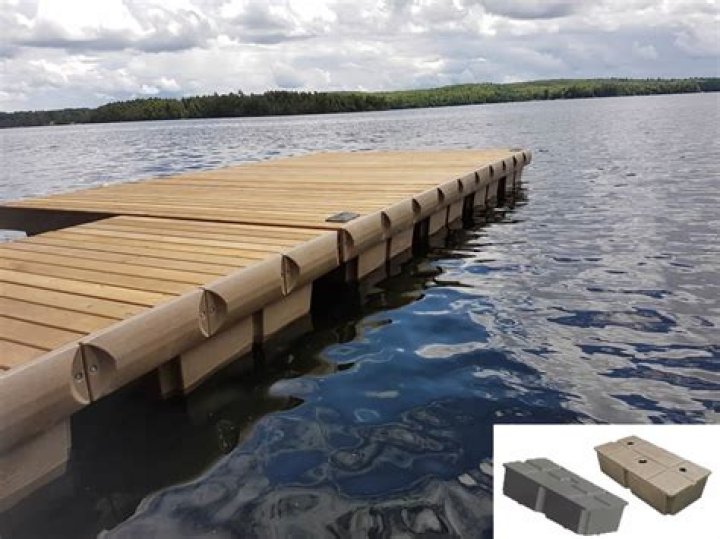

How much do floating docks weigh?
the ‘dead load’, (the weight of dock materials) Example: 6′ x 20′ floating dock section weighs approximately 1,000 lbs or 8.3 pounds per square foot.
How do you calculate the weight of a dock?
Regular dock floats they will support 65 pounds per lineal foot. Considering an 8ft x 16ft dock has three 16ft floats it will support 3 x 16ft x 65lbs = 3,120lbs. The actual dock will weight by itself 10.5 pounds per square foot. Using the same example 8ft x 16ft x 10.5lbs = 1344 pounds.
How is dock flotation calculated?
To calculate the amount of floats needed (for residential use) we recommend do this calculation: Multiply the dock area (length x width) by 25 (for 25 lbs buoyancy per square foot). Divide this amount by the buoyancy capacity of the chosen float (ex. the R-750 float has a capacity of 750 lbs).
How do you weigh down a floating dock?
To install the anchoring weights, lay them on the floating dock, group the appropriate amount of weights (we suggest that you place a piece of cardboard or a piece of wood under in order to protect the dock surface or decking), attach the chain and move the dock over the desired dropping area and then sink them in the …
How big can a floating dock be?
Though many docks are somewhat customizable, AccuDock is the only manufacturer that can create a floating dock as low as 5” or as high as up to an unlimited height. However, for stability reasons, it’s best if the dock can sit as close to level with the water as possible while meeting your needs.
How long do floating docks last?
Floating docks last around 20 to 30 years, but that’s less time than a stationary dock will last. Stationary docks usually last around 25 to 35 years. Due to their floating nature, you won’t want a floating dock if you’re building in an area with high water traffic.
What size should a floating dock be?
Choosing a Floating Dock Size You may be content with a 6′ wide system. If you are planning to spend some of your relaxing time on your new dock you will want to consider one with more stability such as an 8′ or 10′ wide dock.
How high should my dock be above the water?
In general, a dock height at the top of less than 12″ above the water is probably about the minimum. Some people like their docks very high, but 24″ above the water would be an awful lot. Carry the section to the water, by standing in the middle and holding both sides.
How do you secure a floating dock to the shore?
Gangways are the best way to attach your floating dock to the shore or a connecting ramp. A gangway is a long platform, often with handrails, that spans the distance between land and your dock.
How do you secure a floating dock to shore?
How do you anchor a floating dock to land?
Concrete anchors are the most common way to secure a floating dock. Make sure you have lots of weight and use a 3/8 galvanized chain to attach your dock to the anchor. It’s also advisable to mount the chains in a crisscross configuration.
What is the weight of a dock float?
Dock Flotation Rule of Thumb Regular dock floats they will support 65 pounds per lineal foot. Considering an 8ft x 16ft dock has three 16ft floats it will support 3 x 16ft x 65lbs = 3,120lbs. The actual dock will weight by itself 10.5 pounds per square foot.
How to calculate the buoyancy of a floating dock?
Divide the total required buoyancy by the buoyancy per float to determine the number of floats you will need. EXAMPLE #1: A 12′ by 12′ floating dock constructed with 2″ x 8″ framing and 5/4″ x 6″ pressure treated decking would be calculated as follows: 12×12= 144 square feet x 28 = 4032 lbs of buoyancy required.
How much weight does a pontoon dock support?
The actual dock will weight by itself 10.5 pounds per square foot. Using the same example 8ft x 16ft x 10.5lbs = 1344 pounds. So the net weight an 8ft x16ft dock will support is 3,120 – 1344 = 1776 lbs. Our Large Pontoon Floats (22′ x 24″ x 16ft will support 130 pounds per lineal foot.
How are the sections of a floating dock held together?
Each section of a floating dock is held together by a coupler system, which connects the segments and helps sustain various weight and stress levels. EZ Dock coupler systems are unique because we craft them out of environmentally-friendly recycled rubber, which withstands strong waves and absorbs shock.
Dock Flotation Rule of Thumb Regular dock floats they will support 65 pounds per lineal foot. Considering an 8ft x 16ft dock has three 16ft floats it will support 3 x 16ft x 65lbs = 3,120lbs. The actual dock will weight by itself 10.5 pounds per square foot.
How to calculate the size of a dock?
Used to calculate the size & quantity of floats needed to build your dock. *Freeboard is the distance the float is out of the water. **For each additional inch in float height, the freeboard will increase one inch. To increase the *freeboard, increase the float **height or width or length, or add additional floats.
Divide the total required buoyancy by the buoyancy per float to determine the number of floats you will need. EXAMPLE #1: A 12′ by 12′ floating dock constructed with 2″ x 8″ framing and 5/4″ x 6″ pressure treated decking would be calculated as follows: 12×12= 144 square feet x 28 = 4032 lbs of buoyancy required.
How big is a 4×16 boat dock?
A 4×16 dock is 64 square feet X 30 pounds = 1920 pounds spread evenly over the dock. For floating docks, dock capacity varies depending on the size of floats. There is a reference chart in FLOE’s brochure with weights by dock and float size.
