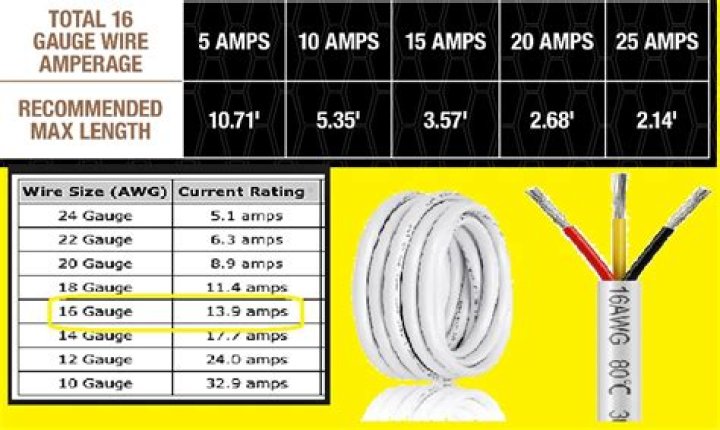

How many amps can a 16 AWG wire carry?
Related Resources
| Size | Temperature Rating of Copper Conductor | |
|---|---|---|
| (AWG or kcmil) | 60°C (140°F) | 90°C (194°F) |
| 16 AWG | — | 18 |
| 14 AWG* | 25 | |
| 12 AWG* | 30 |
What is 16ga wire rated for?
light-duty extension cords
16-gauge are used for light-duty extension cords supporting 13 amps. 14-gauge are usedfor light fixtures, lamps, lighting circuits with 15 amps. 12-gauge are used in kitchen, bathroom, outdoor receptacles, and 120-volt air conditioners supporting 20 amps.
How many watts can 16 AWG wire handle?
For example, a 16 gauge extension cord less than 50 feet in length can power a 1625 watt (W) appliance. A 16 gauge cord that is longer than 50 feet in length can only power an appliance up to 1250W.
What is the difference between 14 AWG and 16 AWG?
The size of the wire in diameter. 14awg is larger in size than 16awg. Larger wire is capable of handling more power with less resistance which helps to get clearer sound.
How many amps can 14 AWG?
15 AMPS
Size & AMP Ratings
| NM, TW, & UF WIRE (Copper Conductor) | SE CABLE (Copper Conductor) |
|---|---|
| 14 AWG – 15 AMPS | 8 AWG – 50 AMPS |
| 12 AWG – 20 AMPS | 6 AWG – 65 AMPS |
| 10 AWG – 30 AMPS | 4 AWG – 85 AMPS |
| 8 AWG – 40 AMPS | 2 AWG – 115 AMPS |
Whats bigger 14 or 16 gauge wire?
14 gauge is thicker than 16 gauge. Bigger speakers or long distances will be better with thicker wire.
Is 14 or 16 AWG better?
14 gauge is thicker than 16 gauge. Bigger speakers or long distances will be better with thicker wire. Supposedly, the higher the gauge, the better the sound – but only to a point, as some wires loose contact or break off.
Is 14 gauge or 16 gauge steel thicker?
16ga steel is . 065” inches thick, that is about 1/16th of an inch thick. 14 gauge in comparison is . 083 inches thick which doesn’t sound like much except it is almost 30% thicker (27.6% to be exact).
How big is a 16 gauge wire?
Share:
| GAUGE | SWG DIAMETER (Inches) | SWG DIAMETER (Millimeters) |
|---|---|---|
| 14 Gauge Wire | 0.0800 in | 2.032 mm |
| 16 Gauge Wire | 0.0640 in | 1.626 mm |
| 18 Gauge Wire | 0.0480 in | 1.219 mm |
| 20 Gauge Wire | 0.0360 in | 0.9144 mm |
What is AWG in electrical?
AWG (American Wire Gauge) is a U.S. standard set of non-ferrous wire conductor sizes.
