How is a turning radius measured?
The turning radius, or turning path, of a vehicle is the smallest circular turn that it can make. A vehicle’s turning circle is the radius (or diameter) measured by the outer wheels of the vehicle while making a complete turn.
What is the turning radius of a vehicle?
Cars, trucks and even bikes all have a turning radius. The turning radius is the space a vehicle needs to make a certain turn, usually on a road.
What is the theoretical formula for turning circle radius?
Vehicle Turning Circle Design and Engineering Equations and Calculators. ro = Scrub radius (mm) the distance in front view between the king pin axis and the center of the contact patch of the wheel, where both would theoretically touch the road.
How do you calculate the turning circle on a van?
Divide the length of the wheelbase by the product of sin times average steer angle. Add the two values together. This is your turning circle.
What is the turning radius of Swift?
4.8 meters
Technical specs of Maruti Suzuki Swift
| Engine & Transmission | |
|---|---|
| Fuel Type | Petrol |
| Turning Radius (wheel base) | 4.8 meters |
| Wheel Size | 14 Inch |
| Alloy Wheel Size | – |
Which car has minimum turning radius?
The turning radius of the vehicle is the size of the smallest ‘U’ turn that the vehicle is capable of making….Low Turning Radius of Cars and SUV – Helps Glide Through City Traffic.
| Vehicle Model Name | Turning Radius (feet) |
|---|---|
| Tata Sumo | 16’1” |
| Hyundai Getz | 16’5” |
| Maruti SX4 | 17’5” |
| Toyota Innova | 17’9” |
What is the minimum turning radius for a car?
What is the minimum inside turning radius required for a passenger vehicle making a 180° turn? A minimum inner turning radius of 14’5” | 4.39 m should be provided for a passenger vehicle making a 180° turn.
Which is better turning radius?
Turning circle radius gives an indication of the space required to turn a particular vehicle. Hence, the higher the value of turning circle radius, the higher is the space you need to turn the vehicle completely and vice versa.
Which cars have the best turning radius?
Cars with a Small Turning Radius for 2016
- BMW i3 – 32.4 Feet.
- Mitsubishi Lancer – 32.8 Feet.
- Nissan 370Z – 32.8 Feet.
- Hyundai Accent – 34.1 Feet.
- Lexus IS – 34.2 Feet.
- Ford Fiesta – 34.4 Feet.
- Chevrolet Sonic – 34.5 Feet.
- Kia Rio – 34.5 Feet.
What car has the best turning radius?
Which car has the shortest turning radius?
The Smart Fortwo is arguably the car with the lowest turning circle in the American car market.
- It has an impressive turning radius of 22.8 feet, which is smaller than any other vehicle we know.
- Per Autobytel, the Mirage has a turning circle of just 30.2 feet.
Which car has more turning radius?
When moving inside a building, the corners of the vehicles may hit the walls and hence the wall-to-wall turning radius has to be considered….Low Turning Radius of Cars and SUV – Helps Glide Through City Traffic.
| Vehicle Model Name | Turning Radius (feet) |
|---|---|
| Maruti Alto | 15’1” |
| Maruti Wagon R | 15’1” |
| Maruti Zen Estilo | 15’1” |
| Maruti Swift | 15’5” |
How is the turning radius of a vehicle determined?
The turning radius depends heavily on specifications of your vehicle like the vehicle size, the amount of axles, the steering and the wheelbase. Many countries have their own vehicle specifications so cars, trucks, busses, ambulances, fire trucks and other design vehicles you use when calculating the turning radius, should be very specific.
What should be the radius of a 90° turn?
The 90° turning path of a passenger vehicle measures the minimum possible turning radius needed when designing parking, loading, and drop-off spaces. Measuring the inner and outer radii of the 90° turn, a minimum inner radius of 11’6” (3.5 m) and minimum outer radius of 19’2” (5.85 m) should be provided.
Which is larger the turning radius or diameter?
Thus, the larger the value of turning radius, bigger is the space you need for a vehicle to take a turn. Generally, vehicles equipped with electric power steering have smaller turning radius compared to that of ordinary vehicles.
How to calculate radius of turn from yaw rate?
In this application a = radius of turn at the Front Left of the vehicle, b = radius of turn at the rear of the vehicle, c = the distance between the reference antenna and the point of interest, and A = the angle between b and c. dx and dy are the lateral distances between the reference antenna and point of interest in the x and y plane.
How is the turning radius of a vehicle calculated?

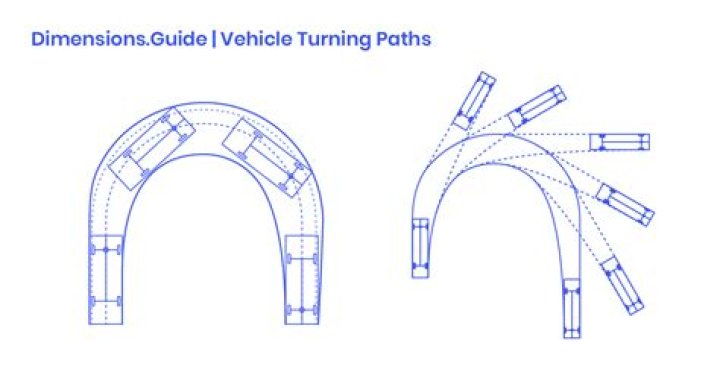

The turning radius, or turning path, of a vehicle is the smallest circular turn that it can make. Measuring the diameters of the inner and outer turning circles, turning paths of vehicles are calculated as standards used when designing roads, parking layouts, loading, and public service areas.
The 90° turning path of a passenger vehicle measures the minimum possible turning radius needed when designing parking, loading, and drop-off spaces. Measuring the inner and outer radii of the 90° turn, a minimum inner radius of 11’6” (3.5 m) and minimum outer radius of 19’2” (5.85 m) should be provided.
In this application a = radius of turn at the Front Left of the vehicle, b = radius of turn at the rear of the vehicle, c = the distance between the reference antenna and the point of interest, and A = the angle between b and c. dx and dy are the lateral distances between the reference antenna and point of interest in the x and y plane.
When does a vehicle have a turning circle?
When a vehicle is cornering, each wheel describes a turning circle. The outer turning circle, or its radius, is the main subject of interest. The calculation is not precise because when a vehicle is cornering the perpendiculars through the centers of all wheels do not intersect at the curve center point (Ackermann condition).
