How does the inside of a rivet gun work?
A pop rivet gun is placed on the rivet, pulling the mandrel into the rivet body, causing it to expand and grip the parts to be joined. Once gripped, the mandrel snaps, permanently holding the rivet in place. This results in a localised joint.
What is blind rivet?
Blind rivets, a.k.a. break stem rivets, are tubular fasteners with a mandrel through the center. The blind end expands, and the mandrel is snapped off. Unlike solid rivets, blind rivets can be installed in joints from only one side of the part—making them “blind” to the opposite side.
Can you install a pop rivet without a gun?
To install rivet nuts without a tool, you will still need more than just your bare hands. You will also need a bolt that 1) has its own nut, and 2) can fit into the rivet nut. You should also have a washer or larger bushing that can fit around the bolt fairly tight.
Can you use a regular rivet gun for plastic rivets?
Harbor Freight has the tool relatively inexpensively HF plastic rivet tool, but you could use your metal rivet gun if you’ve got an extra nose piece fitting that you don’t mind drilling out oversize. Plastic rivets aren’t exactly hard to put in by hand either.
How is riveting done?
How do Rivets Work? The rivet is deformed by pounding or smashing of the tail, which makes the material flatter and usually causes the tail to be expanded by about one and a half times the size of the stem’s original diameter. When finished the tail has the appearance of a dumbbell shape completing the riveted joint.
What tool removes rivets?
For smaller rivets, use a drill bit to drive through the surface. For stubborn rivets that you can’t drill through, grind off the head of the rivet, then bore through it. You could also use a hammer and chisel to break off the head of the rivet and drive it through the surface if you don’t have a drill.
Does a rivet gun remove rivets?
Pop rivets are installed by a gun that draws the long pin through the rivet. The only way rivets can be removed is essentially by destroying them. The easiest way to do this is by “drilling out” the rivet–using friction from a drill bit to cut away at the inner wall of the fastener, separating the shaft from the head.
How do you install an air rivet gun?
Hold the tool with one hand and twist the vise pliers with the other until the needle stub comes free. Check the rivet tip on the tool to confirm it is the right size for the rivets being installed. Check the air pressure if the tool is an air rivet gun to confirm the pressure is sufficient to work properly.
How to use a rivet gun to joint to objects together?
How to use a rivet gun to joint to objects together. 1 Step 1 – Position items to be joined. The first job is to align the objects you are joining together at the point you want to join them and then drill 2 Step 2 – Drill out rivet hole. 3 Step 3 – Insert rivet in hole. 4 Step 4 – Slide rivet gun die over mandrel.
What should I do if my rivet gun is still running?
Many times the hand tool version just needs to be worked a few times to release the rivet stud out of a jammed location. Never aim the rivet gun at your face when it is still operating or connected to an air hose. Always disconnect automated tools before trying to service them.
How do you cut a hole for a rivet?
Mark the position for the rivet. Use a hole cutter or awl to pierce a hole through all the layers at your marked point. NOTE: The Dritz® Rivet Tool Kit does include a hole cutting tool. Remove one of the rubber trays and insert the cutting tool, which looks like a small post. Insert so the tapered end of the post is facing down.
How to use rivet?
To use, a rivet is placed through a hole (same size as rivet) drilled through two flat objects (usually metal). A tool is used to smash one end of the rivet, which expands to about one and a half times the width of the rivet, to hold the rivet in place and objects together.
What type of rivet gun?
- Pneumatic. This rivet gun is powered by compressed air and installs blind rivets very quickly.
- Battery-Powered. This riveting tool comes in different varieties.
- Lever. A lever riveter has a nose piece and works with a wide range of rivets.
- Hand-Powered. This rivet gun uses a lever and squeeze technique to install rivets.

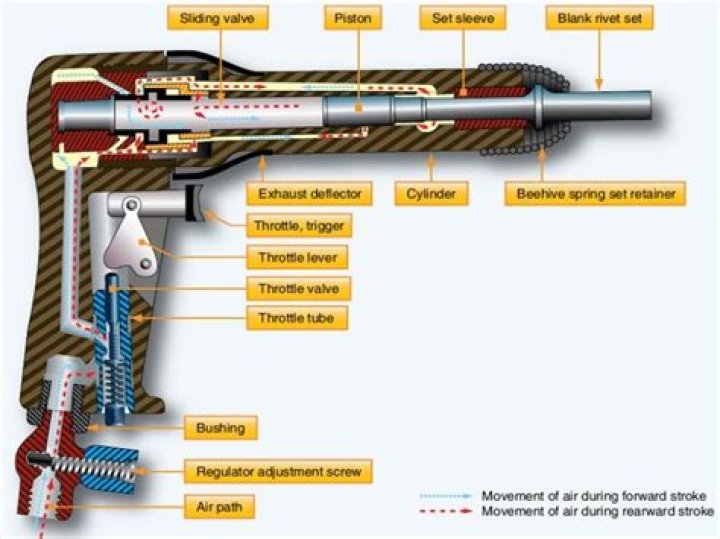

How does a pneumatic rivet gun work?
A rivet gun, also known as a pneumatic hammer, is a type of tool used to drive rivets. The rivet gun is used on rivet’s factory head (the head present before riveting takes place), and a bucking bar is used to support the tail of the rivet. The energy from the hammer in the rivet gun drives the work and the rivet against the bucking bar.
