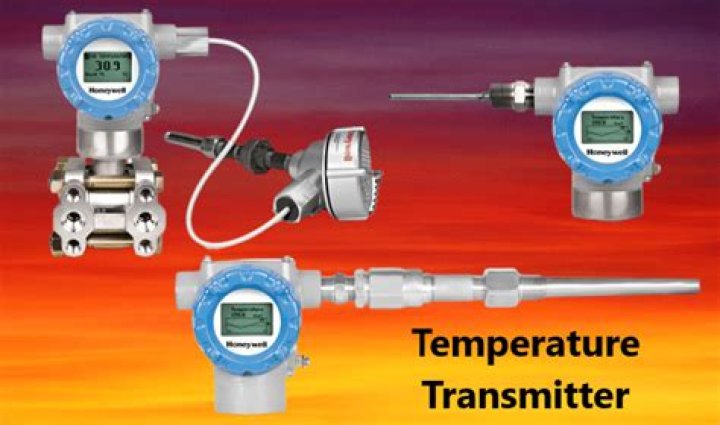

How does temperature transmitter work?
A temperature transmitter works by drawing in the current from the remote DC power supply, connected to the sensor input. The actual signal is transmitted as a change in the power supply. To connect the temperature transmitter, only two copper wires are needed.
What is smart temperature transmitter?
It helps convert low level signals from temperature sensors such as RTDs and TCs into current signals and is capable of transmitting long distances through noisy plant environments. STT173 – Analog output, RTD or thermocouple sensor input. STT17H – HART output, RTD & thermocouple sensor input.
What is the output of temperature transmitter?
What is a temperature transmitter? A temperature transmitters converts the thermocouple or RTD signal to a 4-20 mA output signal and is the ideal solution for many remote temperature measurement applications.
Where is temperature transmitter used?
Temperature transmitters are widely used in modern instrumentation systems because they allow long cable runs to be used in the instrumentation and control system. They also perform some signal conditioning function.
What is temperature transmitter input?
Temperature transmitters convert thermocouple, RTD, and low-level temperature sensor signals to 4-20mA, 0-10V, or other DC voltage/current outputs. Some temperature transmitters have software-configured universal input to convert a broad range of temperature sensor and other signals with a single unit.
How many types of temperature transmitters are there?
The three general categories for temperature transmitters include weather-proof and explosion-proof transmitters, DIN rail or panel mount transmitters, and head mount transmitters. The three general kinds of mounting set-ups include rail mounting, field mounting, and head mounting.
Is a thermocouple a temperature transmitter?
A Temperature Transmitter is a device used to connect to the RTD or thermocouple to amplify and condition the small signals of the temperature sensor. It then transmits these signals for monitoring and controlling purposes.
How do you convert voltage to temperature?
Using the the scale factor and offset, we can convert the voltage input to temperature in degree celsius. This is done by subtracting the voltage by 0.5 and multiplying by 100.
