How does an arterial line transducer work?

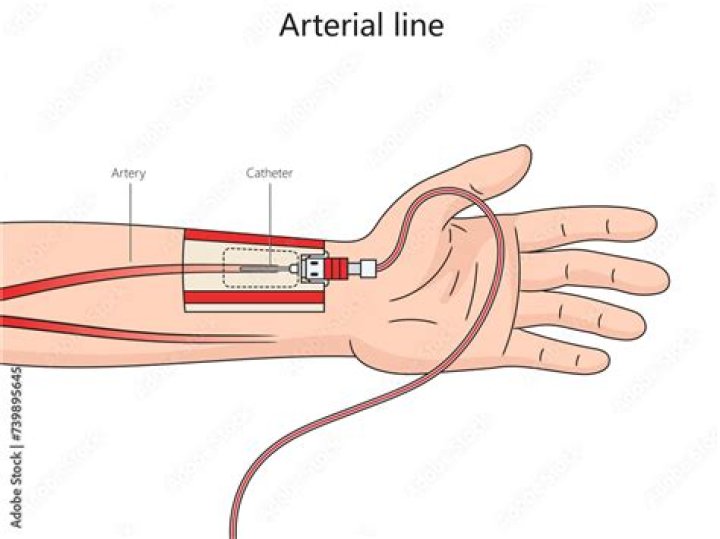

The cannula detects the flow of blood and the pressures exerted with each contraction of the heart. These mechanical pressures are transmitted through the cannula into the fluid filled rigid tubing and up to the transducer. The transducer converts this mechanical pressure into kinetic energy.
What is a disposable transducer?
The Disposable Blood Pressure (BP) Transducers are designed to give consistent and accurate readings of arterial and venous blood pressure measurements in animals of all sizes.
How does a blood pressure transducer work?
A pressure transducer measures pressure. It uses a sensor capable of converting the pressure acting on it into electrical signals. These electrical signals are then relayed to controllers or PLCs where they are then processed and recorded. Pressure transducers use strain gauges to measure the force acting on them.
What causes Underdamping?
Underdamping (defined as when the oscillations are too pronounced and can lead to a false high systolic or a false low diastolic pressure). Causes include: Catheter whip or artefact. Stiff non-compliant tubing.
What is a medical transducer?
Transducer: An instrument that converts electrical energy into mechanical energy. A transducer can also act as a transmitter and receiver of ultrasound information.
Is pressure a transducer?
A pressure transducer is defined as a transducer that converts an input mechanical pressure into an electrical output signal (pressure sensor definition). There are several types of pressure transducers based on size, capacity, measurement method, sensing technology and output requirements.
What is a transducer kit?
Our standard TruWave pressure monitoring transducer kits are sterile, single-use kits that relay blood pressure information from a pressure monitoring catheter to a patient monitoring system.
Which transducer is used for blood pressure?
A capacitive transducer was developed to measure blood pressure using a catheter interfaced to the body. The transducer was made of fused quartz in order to achieve a low temperature coefficient and it consists of a circular body and a 1.25 mm thick sensing diaphragm that mates concentrically with the body.
What is the difference between pressure sensor and pressure transducer?
Pressure Sensors: Millivolt (mV) output signal (also a general term for all pressure types); a device that measures pressure. Pressure Transducers: High level voltage or frequency output signal including 0.5 to 4.5V ratiometric (output signal is proportional to the supply), 1-5V and 1-6kHz.
