How do you use a mending plate?
Generally, a mending plate is laid onto the surface of the area to be joined, repaired or strengthened and it is then screwed into place with four flat-head wood screws (more for the T-shape). For additional strength, plates are used on both sides of the connection.
Can you use mending plates for trusses?
Versatile and easy-to-use mending plates for wood-to-wood connections. No nails or notching of wood required. For non-structural applications only; not for truss applications.
Can you hammer in truss plates?
Hammer the truss plates into place with five 6 d nails on each connecting member.
What are nail plates used for?

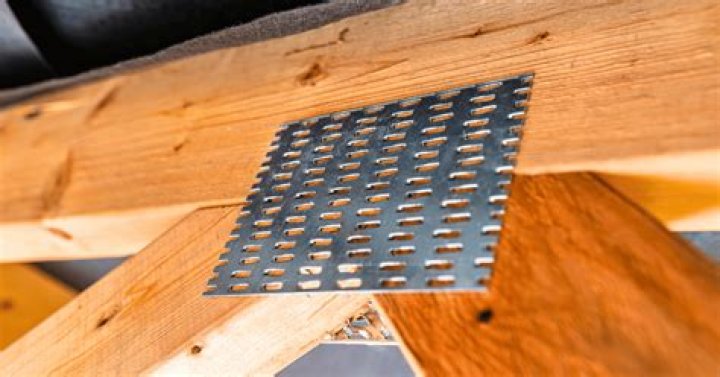

Nail plates are flat strips of galvanised steel which have been punched to create multiple small prongs on one side. These are hammered into the surface of adjacent pieces of timber to hold them together. They are widely used in framed structures and in the prefabrication of structural elements such as trusses.
How do you use a knuckle nail plate?
Knuckle Nailplates are installed simply by hammering on the knuckles of all nails in each plate. It is recommended that the hammer be parallel to the length of the nails (see diagram below) to ensure full penetration of the nails.
What are wood mending plates used for?
The teeth are embedded in and hold the wooden frame components to the plate and each other. Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using tools such as a hydraulic press or a roller.
What are mending plates made of?
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent.
Where do you put the plate on the connector?
The tooth plate connectors are used in laterally loaded timber-to-timber and steel-to-timber joints. They are pressed into the timber members to be connected.
