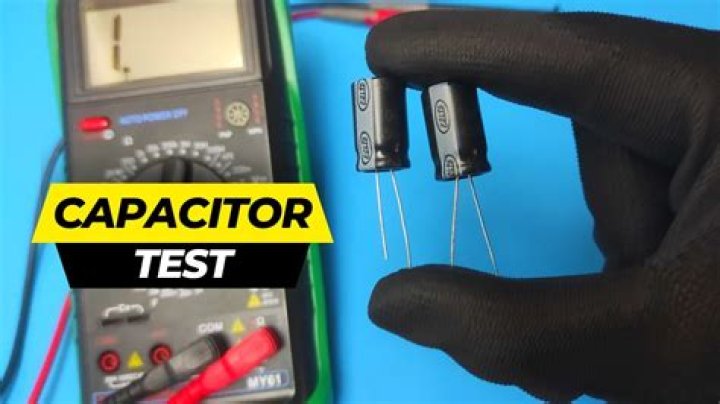

How do you test a polar capacitor?
To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.
Can you check continuity through a capacitor?
Yes, but with caps that small it should not make a difference. Generally your meter measures continuity by applying a small current and then measuring the voltage drop. A short circuit will produce a very small voltage drop. If you connect a large capacitor that’s discharged, this current will charge up the cap.
How do you tell if a capacitor is bad with a multimeter?
If the capacitance value is within the measurement range, the multimeter will display the capacitor’s value. It will display OL if a) the capacitance value is higher than the measurement range or b) the capacitor is faulty.
What is the difference between polar and nonpolar capacitor?
Popular Answers (1) A non-polarized (“non polar”) capacitor is a type of capacitor that has no implicit polarity — it can be connected either way in a circuit. A polarized (“polar”) capacitor is a type of capacitor that have implicit polarity — it can only be connected one way in a circuit.
What happens when capacitor goes bad?
A bad capacitor prevents the exterior unit from properly functioning, which hinders the cooling process as a whole. Second, improper voltage delivery to exterior unit components forces the system to work harder as it attempts to perform its job. Additional components often sustain damage due to a faulty capacitor.
Should there be continuity between a capacitor?
But, should capacitors have continuity? Capacitors should not have continuity. However, when testing the capacitor using the continuity function of a multimeter you might get intermittent ‘beeping’ due to the capacitor charging and discharging. Note, this does not indicate that the capacitor has continuity.
What happens when a start capacitor goes bad?
A run capacitor is an energy-saving device that is in the motor circuit at all times. If a run capacitor fails, the motor can display a variety of problems including not starting, overheating, and vibrating. A bad run capacitor deprives the motor of the full voltage it needs to operate correctly.
Does polarity matter with capacitors?
Is there a polarity for capacitor? Electrostatic capacitors are nonpolar, meaning they can be connected in any direction of polarity, and there is no difference. Electrolytic capacitors are polar by nature. They can only be connected with fixed terminal polarities.
Which type of capacitor is polarized?
Electrolytic capacitors
Electrolytic capacitors are polarized. Three families are available, categorized according to their dielectric. Niobium electrolytic capacitors with niobium pentoxide as dielectric.
How do you test the polarity of a capacitor?
All you have to do is read the capacitance that is on the exterior of the capacitor and take the multimeter probes and place them on the leads of the capacitor. Polarity doesn’t matter.
How can you tell if a capacitor is good or not?
Checking the capacitance of a capacitor is a great test for determining whether a capacitor is good or not. Another test you can do to check if a capacitor is good or not is a voltage test. Afterall, capacitors are storage devices. They store a potential difference of charges across their plate, which are voltages.
What’s the difference between a bipolar and polarized capacitor?
This is in contrast with polarized capacitors such as electrolytics, where applying the wrong polarity can destroy the cap. So a bipolar label is typically used to draw attention to a cap whose value is so large that a polarized cap might be expected, but which must not actually be polarized. A bipolar capacitor is just a non-polarized capacitor.
Can a voltmeter be used to test a capacitor?
Test a Capacitor with a Voltmeter. If you are dealing with a polarized capacitor, then you must observe polarity and the correct lead assignments. Positive voltage goes to the anode (the longer lead) of the capacitor and negative or ground goes to the cathode (the shorter lead) of the capacitor.
All you have to do is read the capacitance that is on the exterior of the capacitor and take the multimeter probes and place them on the leads of the capacitor. Polarity doesn’t matter.
This is in contrast with polarized capacitors such as electrolytics, where applying the wrong polarity can destroy the cap. So a bipolar label is typically used to draw attention to a cap whose value is so large that a polarized cap might be expected, but which must not actually be polarized. A bipolar capacitor is just a non-polarized capacitor.
Checking the capacitance of a capacitor is a great test for determining whether a capacitor is good or not. Another test you can do to check if a capacitor is good or not is a voltage test. Afterall, capacitors are storage devices. They store a potential difference of charges across their plate, which are voltages.
How to test a capacitor using an analog multimeter?
In order to Test a Capacitor using Analog Multimeter, we are going to use its Ohmmeter functionality. As usual, disconnect the capacitor and discharge it. Put the Analog Multimeter in Ohmmeter position and if there are multiple ranges, choose a higher range.
