How do you size a fillet weld?
To develop the full strength of a plate using fillet welds, it is necessary that the leg size of the fillet be 3/4 of the plate thickness. A fillet weld with this leg size will out-pull its plate under any magnitude and direction of loading.
How do I calculate what size weld I need?
The maximum size of fillet weld will be= 0.7 x T, where T is the base metal thickness. In case of dissimilar thickness, we should consider the thinner base metal thickness.
Why is there a minimum weld size requirement regardless of loading?
Remember, we are concerned about heat input, not the final size of the weld. The premise behind this is that the required minimum weld size will provide a sufficiently high heat input into the plate to provide the desired slow rate of cooling.
What is the main reason for the minimum fillet weld sizes?
Minimum fillet weld sizes are intended to ensure there is sufficient heat input from the arc to avoid rapid cooling.
What is the minimum fillet weld size?
Click here to see our latest technical engineering podcasts on YouTube.
| Base metal thickness (T)a | Minimum size of fillet weldb | |
|---|---|---|
| in | mm | in |
| 1/4 < T < 1/2 | 6 < T < 12 | 3/16 |
| 1/2 < T < 3/4 | 12 < T < 20 | 1/4 |
| ¾ < T | 20 < T | 5/16 |
What is the minimum weld size?
c. Minimum size for cyclically loaded structure shall be 3/16in [5mm].
How strong is a 1 inch weld?
It is not an engineering standard, just a rule of thumb that will keep You out of troubble most of the time. That works out to 927 pounds per inch of fillet leg per inch of length for a 70,000 psi filler metal.
What is minimum specified length of fillet weld?
What is the minimum specified length of fillet weld? Explanation: As per IS code, the actual length of fillet weld should not be less than four times the size of weld. If this requirement is not met, the size of weld should be one fourth of the effective length.
What is the maximum size of fillet weld?
The maximum size of fillet weld is obtained by subtracting 1.5mm from the thickness of the thinner member to be jointed. When welds are applied to round toe of steel sections, the maximum size of the weld should not be more than 1/3 of the thickness of the section at toe.

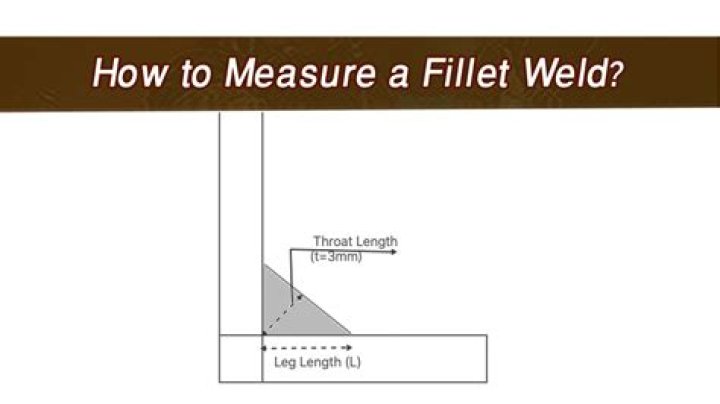

What is fillet size?
Fillet weld sizes are measured by the length of the legs of the largest right triangle that may be inscribed within the fillet weld cross section.
What is the minimum length of a fillet weld?
“The minimum length of a fillet weld shall be at least four times the nominal size, or the effective size of the weld shall be considered not to exceed 25% of its effective length.” If the nominal size of a fillet weld is 10 mm then the minimum length of the fillet weld is 40 mm.
How much weight can a single weld hold?
The answer of 927 pounds per 1/16 leg per inch of weld length is the correct answer. The other part of the problem is that you can’t exceed 0.4 times the yield strength of the base metal times the area of the weld (i.e., leg X length).
