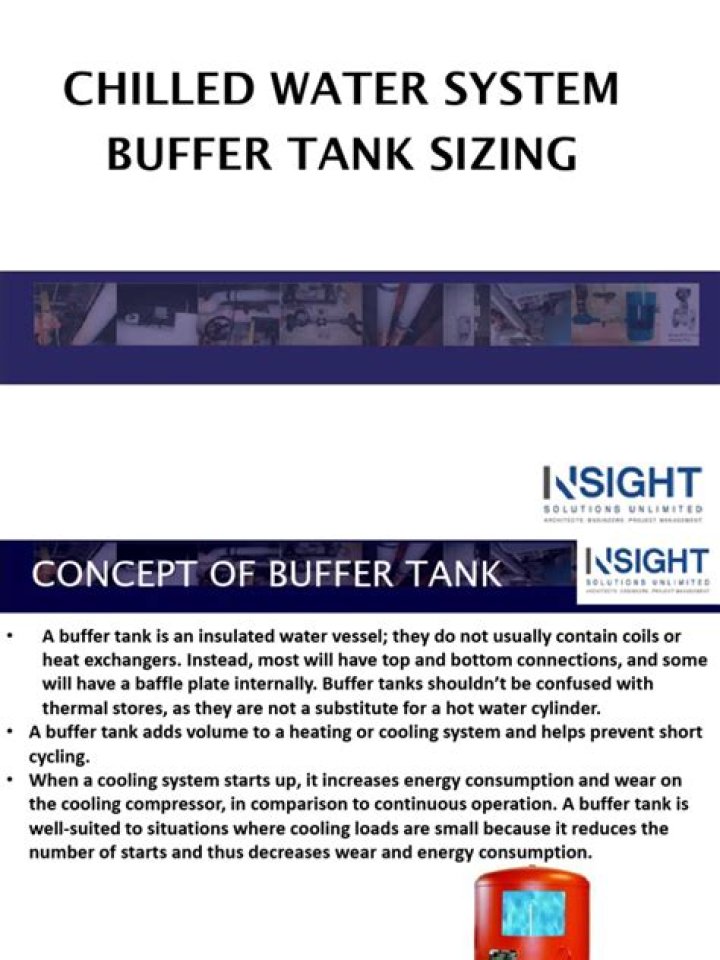

How do you size a chilled water buffer tank?
To properly size the buffer tank, calculate the systems total capacity including all piping and terminal equipment. Subtract that number from the chiller manufacturers recommended system capacity. A 100 ton chiller requires 1000 gallons of system capacity for high accuracy control.
Why use buffer tank in chilled water?
Buffer tanks form a key component in chilled water systems, often being used to provide additional volume in closed water systems. Adding this extra water capacity can reduce cycling of compressor units, which in turn improves temperature control giving a more consistent cooling system operation.
Where do you put a chilled water buffer tank?
Q: Where in the chilled water loop is the tank installed? A: The tank should be installed at the suction side of the pump. This is considered the point of no pressure change.
What is the difference between buffer tank and expansion tank?
An expansion tank allows for the expansion and contraction of the system when it heats up and cools off and provides head pressure for the circulation pump. A buffer tank adds volume to the system and helps to prevent short cycling.
How does a buffer vessel work?
The primary role of a buffer tank is usually to keep a minimum volume of water ‘in circuit’ at times when the heating load is very low. This prevents the heat pump from short cycling and provides a bypass route to maintain the minimum flow rate through the heat pump if most of the heating zones have shut down.
How does a buffer tank work?
Q: How does the buffer tank help? A: When a small zone calls for heat it signals the boiler to come on. As the circulator pushes the boiler water through the zone, the excess heated water is circulated through the buffer tank. This added volume prevents the boiler from short cycling (Figure 1).
What are chillers used for?
What is a Chiller? The purpose of chillers, whether they’re industrial or HVAC, is to move heat from one location and transport it to another place to chill. Chillers tend to use either water or another type of liquid to process it through the piece of equipment they’re trying to chill.
What is a hydronic buffer tank?
Buffer tanks are designed as the thermal energy battery for a hydronic heating system. They are used in almost every application and provide efficiencies to the heater unit allowing it to run in longer cycles. This reduces short cycling which is the #1 cause of failure in any type of hydronic heater.
When should you use a buffer tank?
A buffer tank is typically used when there is a variable cooling requirement. In such applications the tank is used as storage to cover peak loads or in situations when a surge in demand exceeds the capacity of the cooling system.
What is chiller capacity?
Divide Q (BTUs per hour) by 12,000 (the number of BTUs in one ton of cooling capacity). This yields the chiller capacity required to handle the process heat load in tons per hour: Example: 240,000/12,000= 20 tons/hr.
What is the difference between cooler and chiller?
As nouns the difference between chiller and cooler is that chiller is something that chills, especially a machine that produces cold air, either for air conditioning, to prepare chilled foods etc while cooler is (countable) anything which cools.
