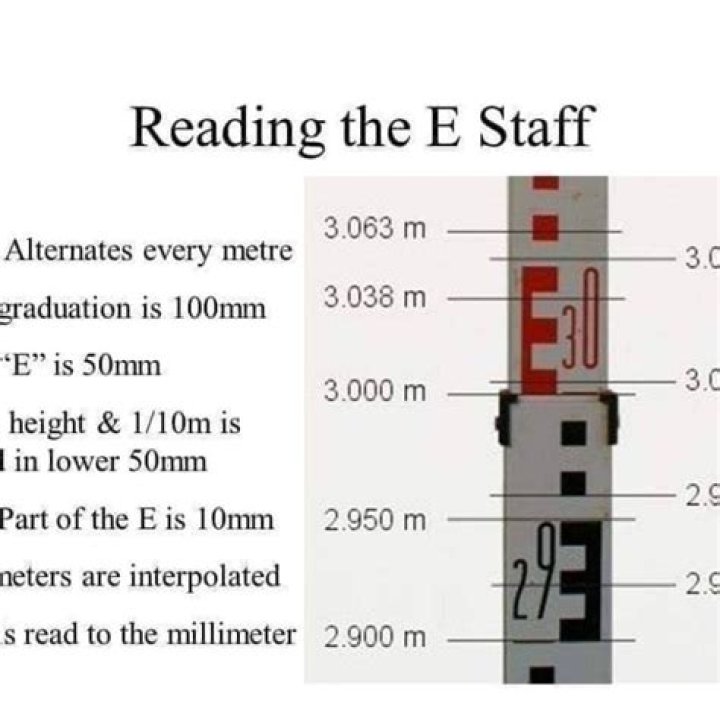

How do you read a leveling staff?
The staff reading is the reading on the staff at which the horizontal hair appears to cut the staff. A staff reading consists of 4 digits. The first digit represents the whole number of meters, the second digit represents decimeters, and the third, and fourth digits represent millimeters.
How do you hold and read a leveling rod?
Have the rod person place the rod at the zero position of the section and, using the bubble level attached to the rod as a reference, hold the rod vertically. Once the rod is held vertically, the rod person should signal to the instrument operator to take a reading.
How do you read elevation numbers?
To find an elevation, simply set the rod foot at any location on the job within the range of your laser or optical instrument. Run the detector and / or front rod section up or down until you pick up the “on grade” signal from your detector. Read the number opposite the pointer. That number is your true elevation.
What is the least count of reading for self-reading staff?
5 mm
The least count of a leveling staff is 5 mm.
How many types of leveling staff are there?
There are usually three forms of self-reading staff. They are solid staff, folding staff and telescopic staff.
What is the reason for waving the rod in leveling?
What is the reason for waving the rod in leveling? It ensures the rod is plumb when taking a measurement. It ensures the highest reading is taken. It helps the instrument person to focus.
What is Rod reading?
A direct reading from the Grade Rod is used to determine the elevation of the turning point. Instead of moving the rod from the turning point, the instrument is moved to a new location. The instrument is then leveled and adjustments are made to correctly make new measurements.
What do elevation numbers mean?
above sea level
Elevation is distance above sea level. Elevations are usually measured in meters or feet. They can be shown on maps by contour lines, which connect points with the same elevation; by bands of color; or by numbers giving the exact elevations of particular points on the Earths surface.
How do you determine wheel elevation?
Rim elevation = Node invert elevation + Maximum node depth (height between its invert and the ground surface).
Is graduated rod used to determine the difference in elevation?
A Grade Rod or leveling rod, is a graduated rod used to determine differences in elevation. Grade Rods can be used with surveyor, optical and laser levels.
Is a small device attached to the rod when extremely long sights make direct Rod reading difficult?
DEFINITION OF TERMS • Targets: A target is a small device attached to the rod when extremely long sights make direct reading of the rod difficult or impossible. Targets are made of metal and may be circular, elliptical, or rectangular in shape.
How does a leveling rod measure a level?
‘Look through the level’s scope while a helper holds a leveling rod at the benchmark and moves the rod’s marker until it falls in the scope’s crosshairs.’ ‘Spirit leveling measurements are made by sighting graduated leveling rods through a telescope whose axis is precisely horizontal.’
How do you put a leveling rod on a tripod?
Tilt the head of the tripod until the bubble in the level at the top of the tripod is between the two center lines. Look through the eyepiece of the level tripod. You will see your assistant holding the leveling rod. The lens of the eyepiece has a horizontal line going across it.
What’s the best way to use a grade rod?
Have your assistant hold the grade rod vertically. It needs to be plumb to ensure an exact measurement. Make sure the rod is plumb by holding a torpedo level along the side or by adjusting the rod so it is lined up in the cross-hair of the transit level. Adjust the zoom and the focus of the transit level to read the numbers on the grade rod.
How can you tell if a grade rod is plumb?
It needs to be plumb to ensure an exact measurement. Make sure the rod is plumb by holding a torpedo level along the side or by adjusting the rod so it is lined up in the cross-hair of the transit level. Adjust the zoom and the focus of the transit level to read the numbers on the grade rod.
What’s the best way to use a leveling rod?
Ensure the legs rest squarely on the ground to anchor the tripod firmly in this position. Tilt the head of the tripod until the bubble in the level at the top of the tripod is between the two center lines. Look through the eyepiece of the level tripod. You will see your assistant holding the leveling rod.
What’s the difference between a levelling rod and a staff reading?
Leveling Staff is an instrument used to determine the difference in height between two points. Levelling Staff is known as the staff rod, Levelling rod, and self-reading staff, as the staff readings may be taken directly by the instrument man from the levelling instrument.
How do you read the elevation of a laser rod?
To determine the amount of cut or fill at any location within the range of your laser, set the rod down and find the “on grade” signal with your laser detector. Read across from the detector pointer and the tape will tell you how much to cut or fill. EXAMPLE: Rod reading is in “BLUE”section 1.75 feet. Existing grade is too LOW.
Where does the leveling rod cross the eyepiece?
You will see your assistant holding the leveling rod. The lens of the eyepiece has a horizontal line going across it. This line will cross the leveling rod at a specific height. This height is the difference in elevation between your benchmark location and the location of the leveling rod.
